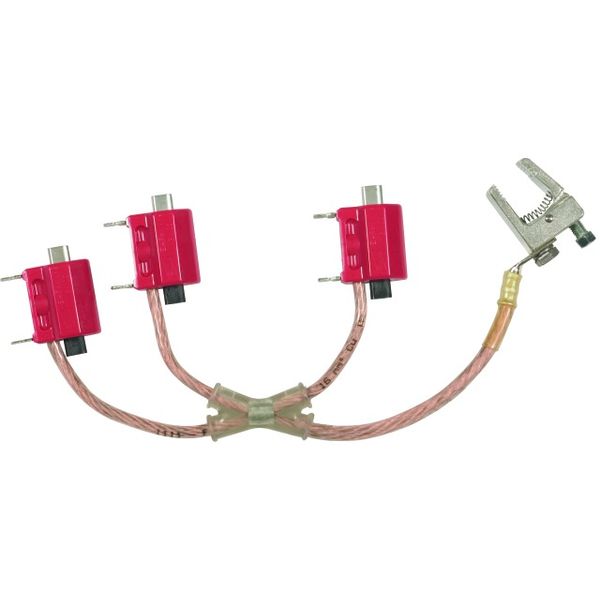

Three-pole earthing and short-circuiting device TI 16mm² w. earth.cart image 1
Dehn

Three-pole earthing and short-circuiting device TI 16mm² w. earth.cart

In stock: No Vendor stock: No Minimal order quantity: 1
Price (excl. VAT):
744,14 €
This price is valid until 31.12.25
EAN: 4013364163737
MPN: V1RC3P2
Package: 1
Estimate delivery time at our warehouse (approx.): 2 weeks

Technical Information

Item condition New
Manufacture name Three-pole earthing and short-circuiting device TI 16mm² w. earth.cart
Brand Dehn
Categories Tools, measuring instruments and protection
Country of origin DE
Harmonized System Code 8535 9000 00
Model Cable
Number of poles 3
Max. short circuit current 4.5 kA
Wire cross section, phase-side 16 mm²
Wire cross section, earth-side 16 mm²

Packing details

Packing level 1 4013364163737, 4013364163737

Other Technical data

Material Copper
Length phaseline a 140 mm
Length phaseline b 140 mm
Length phaseline c 140 mm
Length earth line 250 mm
Connecting part, phase-side Other
Connecting part, earth-side Other

Downloads

Product data sheet

Description

Earthing and short-circuiting device TI. Partly insulated type. Spring-loaded earth clamp, clamping range up to 24 mm and fixing via adjustable handle Part No.745 921. Earthing cartridges of size NH 00 fixed on the phase cable. For service entrance boxes. Variant No. V1RC3P2. Other cable lengths can be selected online via the earthing and short-circuiting configurator at www.dehn-international.com/en/EaS.
