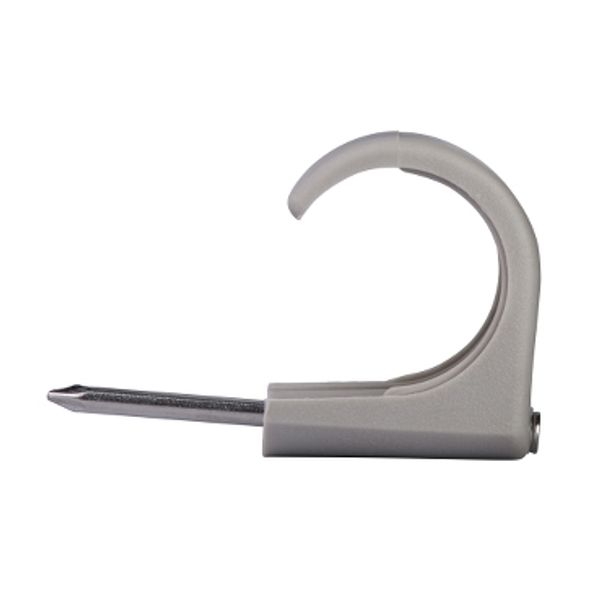

Thorsman - nail clip - TC 22...26 mm C5M - 2.5/45/21 - grey - set of 50
In stock: No
Vendor stock: No
Minimal order quantity: 50
Price (excl. VAT):
0,24 €
Subtotal: 12,00 €
MOQ: 50
EAN: 7315882240189
MPN: 2240180
Package: 1
Box: 50
Pallet: 31500
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | Thorsman - nail clip - TC 22...26 mm C5M - 2.5/45/21 - grey - set of 50 |
| Brand | Schneider Electric |
| Categories |
Cable Clips
|
| Harmonized System Code | 3926 9097 00 |
| Suitable for diameter | 22-26 mm |
| Width opening | 0 mm |
| Height opening | 0 mm |
Packing details
| Packing level 1 | 7315882240189 |
| Packing level 2 | 7315882240186 |
| Packing level 3 | 7315882240189 |
Other Technical data
| Colour | Grey |
| Surface protection | Untreated |
| With nail | Yes |
| Nail length | 45 mm |
| Hardened steel nail | Yes |
| Material | Plastic |
| Nail diameter | 2.5 mm |
| Double model | No |
Downloads
ECOP (Environmental Code of Practice)
Declaration DOC CE (Declaration of conformity CE)
Declaration EPD (Environmental Product Declaration)
Description
This Thorsman plastic clip 2240180 (set of 50 pieces) includes a nail It is intended for the installation of round cable 22-26 mm, mainly for indoor use Color: grey Material: C5-M acid-proof stainless steel AISI 316, SS 142343 acid-proof stainless steel AISI 316, clip PP (polypropylene), electroplated PP (polypropylene), nail acid-proof stainless steel AISI 316 This clips is in corrosivity category TC-C5M and has a nail of acid-resistant stainless steel. It can be used in extra tough environments Make a hole in single plasterboard sheets with an awl. The start of a hole is sufficient in double plasterboard sheets Mounting instructions: in wood and compressed board: Nail in. In concrete and low density materials, brick, etc: Use TCP clip plugs Hammer the clip plug into lowdensity concrete without predrilling. Not for thick nails In plasterboard: Use TCP clip plugs. Make a hole in single plasterboard sheets with an awl. The start of a hole is sufficient in double plasterboard sheets The Thorsman TC clip range includes a wide range of clips in various designs and dimensions, colours, nails and packages, intended for the installation of round and flat cables The packages of the clips are provided with colour pictures of the correct product
