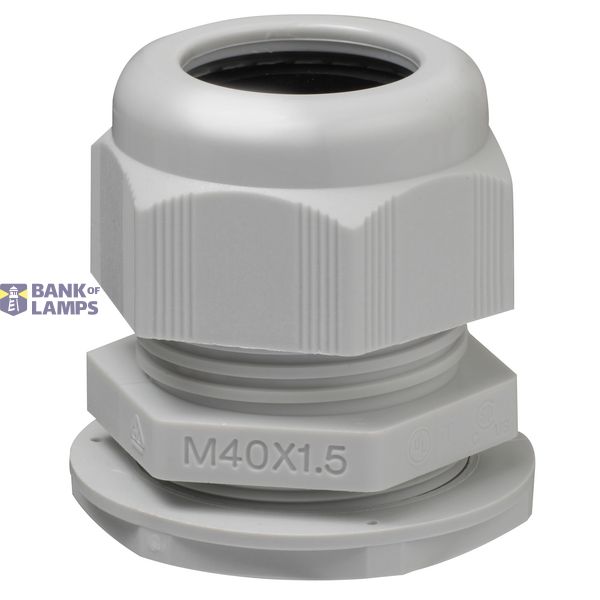

Thorsman Glands - cable gland - grey - M40 - diameter 19 to 28
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | Thorsman Glands - cable gland - grey - M40 - diameter 19 to 28 |
| Brand | Schneider Electric |
| Country of origin* | TR |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| ETIM | EC000441 |
| Model | Straight |
| Thread length | 9 mm |
| Material quality | Polyamide (PA) |
| Thread type | Metric |
| Material | Plastic |
| Hexagon angular dimension | 0 mm |
| Suitable for cable diameter | 19-28 mm |
| Degree of protection (IP) | IP68 |
| Nominal thread size inch/gas pipe thread | Other |
| Nominal thread size metric/PG | 40 |
Packing details
| Packing level 1 | 3303432363802 |
| Packing level 2 | 3303432363809 |
| Packing level 3 | 3303432363806 |
Other Technical data
| Halogen free | Yes |
| Shock resistant | Yes |
| RAL-number | 7035 |
| Surface protection | Untreated |
| Bend radius protection/trumpet flare | Yes |
| With strain relief | Yes |
| Screened | No |
| Glass-fibre reinforced | Yes |
| Type of sealing | Membrane |
| Operating temperature | -30-80 °C |
| Pitch thread | 0 mm |
| Explosion-tested version | No |
| Flat cable coupling | No |
| Multi seal area | Yes |
| With locknut | Yes |
| Separable screw gland | Yes |
| For Ex-zone gas | None |
| For Ex-Zone dust | None |
| Wrench width | 40 mm |
Downloads
Description

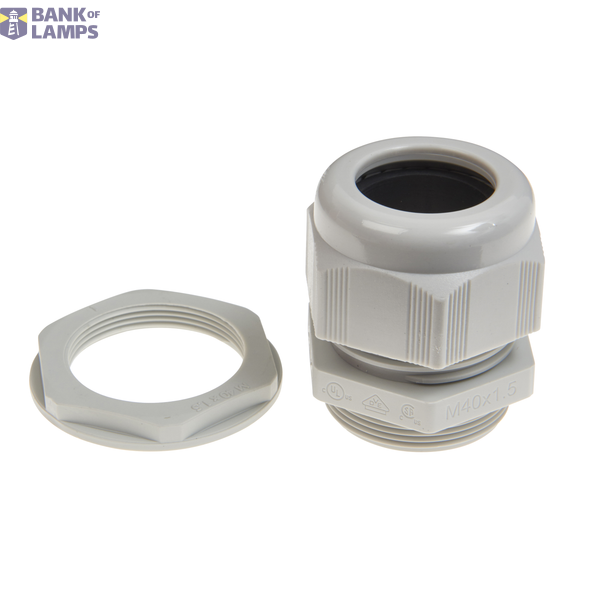

Cable gland with strain relief and external metric. Locknut with internal metric or to be used together with cable glands in untapped holes. Cable gland equipped with nut and neoprene seal for one cable.
