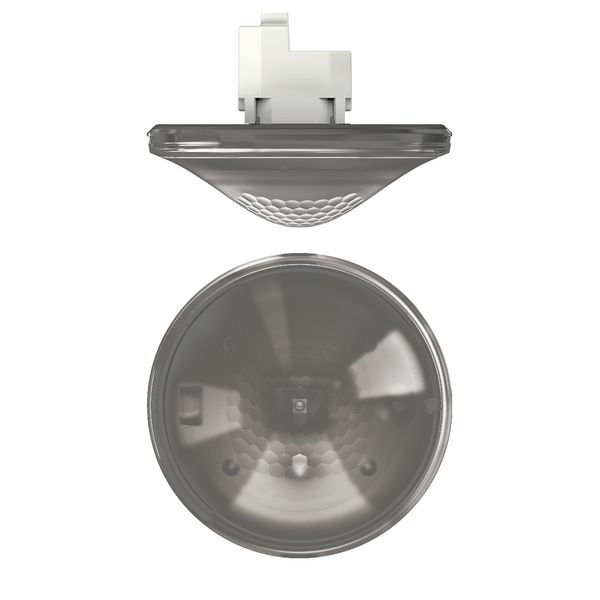

thePrema S360-100 E UP BK

Name: thePrema S360-100 E UP BK
Brand: Theben
Price: 198.090 EUR
Availability: PreOrder

Order only

Price (excl. VAT):

198,09 €

This price is valid until 31.12.25

EAN: 4003468200520

MPN: 2070602

Package: 1

Estimate delivery time at our warehouse (approx.): 2-4 weeks

Technical Information

Item condition	New
Manufacture name	thePrema S360-100 E UP BK
Brand	Theben
Categories	Motion & Presence Sensors
Country of origin	DE
Harmonized System Code	8536 5080 00
Mounting method	Flush mounted (plaster)
Colour	Black
Width	110 mm
Model	Presence detector
Height	77 mm
Depth	110 mm
Connection type	Screwed terminal
Frequency	50-60 Hz
Max. transmission range frontally	4 m
Max. transmission range sideways	4 m
Max. switching power	2300 W
Scan angle	360 °
Degree of protection (IP)	IP40
Min. switch-on time	10 s
Max. duty cycle	60 min
Response value luminosity adjustable	Yes
Optimum mounting height	2.5 m
Max. presence range	25 m²
Sensor type	Passive infrared

Packing details

Packing level 1

4003468200520, 4003468200520

Other Technical data

Halogen free	No
Surface protection	Untreated
Creep-under protection	No
Voltage type	AC
Switch-off delay	3600 s
Built-in depth	40 mm
With remote control	No
Diameter	110 mm
Built-in width	48 mm
Built-in diameter	48 mm
Staircase monitoring	Yes
Bridging switch	No
Suitable for wireless transmission	No
Material quality	Thermoplastic
Temperature	0-50 °C
Max. starting current	10 A
Material	Plastic
Response value sensitivity adjustable	Yes
Dim function with dimmer basic element	No
Response value luminosity	5-3000 lx
Suitable for C-load	No
Diameter detection range on floor	8 m
Remote operation	Yes
HVAC-control	No
Constant light control	No
Substation input	Yes
RAL-number (similar)	9005
With signal unit	No
Teach-function for response value luminosity	Yes
Networkable	Yes
Forced switch off	No
Impact strength	IK04
With alarm function	No
Transparent	No
Animal zone	No
Surface finishing	Matt
Detection angle horizontal	0-360 °
Suitable for wall mounting	No
With DALI interface	No
Forced switch on	No
Min. starting current	0.1 A
Min. depth of built-in installation box	46 mm
Suitable for ceiling mounting	Yes
Anti-bacterial treatment	No

Description

Passief infrarood aanwezigheidsmelder voor plafondmontage, zwart, vierkant detectiebereik 360°, automatische aanwezigheids- en lichtsterkteafhankelijke sturing voor verlichting, vol- of halfautomatisch gebruik omschakelbaar, Teach-In functie, zelflerende nalooptijd, mixlichtmeting, kanaal A licht: relais 230 V/10 A, nalooptijd instelbaar, trappenhuis-tijdschakelaar functie, aansluitmogelijkheid voor impulsdrukker of schakelaar voor handmatig schakelen met automatische herkenning impulsdrukker/schakelaar, gevoeligheid instelbaar, eenvoudige instelling van het energiebesparingsgedrag met de nieuwe "eco plus" functie, op afstand in te stellen met optionele afstandsbediening
