Schneider Electric

TeSys LT47 electronic over current relays - manual - 0.5...6 A - 200...240 V AC

Order only
Price (excl. VAT):
94,10 €
This price is valid until 31.12.25
EAN: 3389110576566
MPN: LT4706M7S
Package: 1
Box: 16
Pallet: 256
Estimate delivery time at our warehouse (approx.): By request

Technical Information

Item condition New
Manufacture name TeSys LT47 electronic over current relays - manual - 0.5...6 A - 200...240 V AC
Brand Schneider Electric
Categories Electronic Overload Protection
Country of origin KR
Harmonized System Code 8536 4900 00
Rated control supply voltage at AC 50 Hz 200-240 V
Adjustable current range 0.5-6 A

Packing details

Packing level 1 3389110576566
Packing level 2 3389110576564
Packing level 3 3389110576566

Other Technical data

Mounting method Separate positioning
Number of auxiliary contacts as normally open contact 1
Number of auxiliary contacts as normally closed contact 1
Number of auxiliary contacts as change-over contact 0
Rated control supply voltage at AC 60 Hz 200-240 V
Release class Adjustable
Type of electrical connection of main circuit Screw connection
Voltage type for actuating AC
Reset function input Yes
Reset function automatic No
Reset function push-button Yes

Downloads

Declaration EPD (Environmental Product Declaration) Instructions for use Technical manual Others Mounting instruction

Description

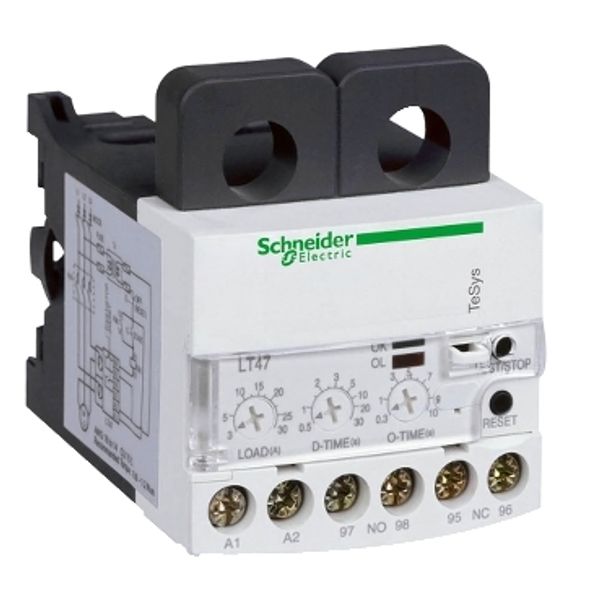

TeSys LR47 electronic overcurrent relay, 6A/690V, with manual reset, to be supplied with 200-240V AC, for protection of motors with a rated current 0.5-5A. It provides 3 dials to adjust the protection, LOAD (0.5-6A) for the overcurrent level, O-TIME (0.3-10sec) for the acceptable duration of the overcurrent, D-TIME (0.5-30sec) for the starting duration. In addition, the device trips when there is a missing phase during more than O-TIME. The device has a reset button, a test/stop button, 2 LED indicators (Run/Trip), 2 auxiliary contacts 1NO+1NC for fault signalling. Settings can be locked by sealing the transparent cover. DIN rail mounting, without power terminals (currents monitored by 2 current transformers crossed by the motor cables). Multi standards certified (IEC, UL, CSA, CCC, EAC), it conforms to RoHS/REACh regulation.
