Schneider Electric

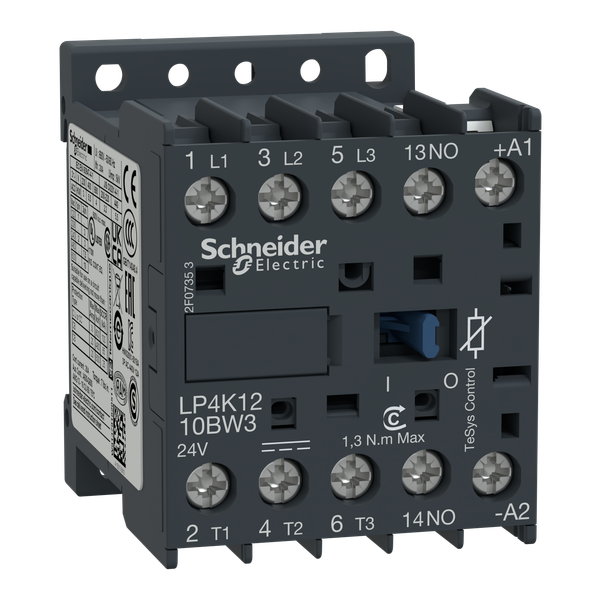

TeSys K contactor, 3P,AC-3, 440V, 12A, 1NO aux, 24V DC coil, low consumption coil,screw clamps terminals

In stock: Yes Vendor stock: No Minimal order quantity: 1
Price (excl. VAT):
37,26 €
This price is valid until 31.12.25 or while stock lasts
EAN: 3389110791198
MPN: LP4K1210BW3
Package: 1
Box: 40
Pallet: 640
Estimate delivery time at our warehouse (approx.): By request

Technical Information

Item condition New
Manufacture name TeSys K contactor, 3P,AC-3, 440V, 12A, 1NO aux, 24V DC coil, low consumption coil,screw clamps terminals
Brand Schneider Electric
Categories AC Power Contactors
Country of origin FR
Harmonized System Code 8536 4190 00
Rated operation power at AC-3, 400 V 5.5 kW
Number of normally open contacts as main contact 3
Number of normally closed contacts as main contact 0
Rated operation current Ie at AC-3, 400 V 12 A
Rated control supply voltage at DC 24 V
Type of electrical connection of main circuit Screw connection
Voltage type for actuating DC

Packing details

Packing level 1 3389110791198
Packing level 2 3389110791196
Packing level 3 3389110791198

Other Technical data

Modular version No
Number of auxiliary contacts as normally open contact 1
Number of auxiliary contacts as normally closed contact 0
Rated operation current Ie at AC-1, 400 V 20 A
Rated operation current Ie at AC-4, 400 V 6 A
Rated operation power at AC-4, 400 V 2.2 kW
Rated operation power NEMA 0 kW

Downloads

ECOP (Environmental Code of Practice) Declaration EPD (Environmental Product Declaration) Declaration DOC CE (Declaration of conformity CE) Technical manual Others Mounting instruction

Description

TeSys K contactor, 3 poles (3NO), for motor control applications up to 12A/690V AC-3 (5.5kW@400V). It provides a low consumption 24V DC coil with transient suppressor module, 1NO built-in auxiliary contact, connection by screw clamp terminals. For operating rates until 600 cycles/hour in AC-3 and environments until 50°C, it procures reliability and durability to standard applications. Very compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).
