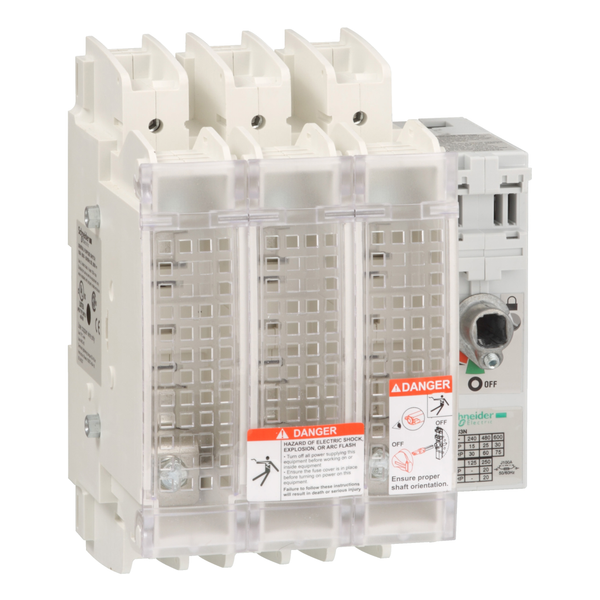

TeSys GS - switch-disconnector-fuse - 3 P - UL - 100 A- fuse size J
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
347,06 €
EAN: 3606480512346
MPN: GS2JU3N
Package: 1
Box: 4
Pallet: 16
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | TeSys GS - switch-disconnector-fuse - 3 P - UL - 100 A- fuse size J |
| Brand | Schneider Electric |
| Categories |
Fuse Switch Disconnectors
|
| Country of origin | FR |
| Harmonized System Code | 8536 5080 00 |
| Rated permanent current Iu | 100 A |
| Number of poles | 3 |
| Degree of protection (IP), front side | IP20 |
| Suitable for fuses | Other |
| Version as main switch | Yes |
| Version as safety switch | No |
| Rated operation power at AC-23, 400 V | 51 kW |
| Max. rated operation voltage Ue AC | 750 V |
Packing details
| Packing level 1 | 3606480512346 |
| Packing level 2 | 3606480512344 |
| Packing level 3 | 3606480512346 |
Other Technical data
| Cable entry | Other |
| Conditioned rated short-circuit current Iq | 100 kA |
| Motor drive integrated | No |
| Type of electrical connection of main circuit | Screw connection |
| Version as emergency stop installation | No |
| Type of control element | Without actuator |
| Rated short-time withstand current lcw | 100 kA |
| Suitable for floor mounting | No |
| Suitable for front mounting | No |
| Suitable for busbar mounting | Yes |
| With error protection | No |
| Motor drive optional | No |
| Position control element | Front side |
| Equipped with connectors | No |
Downloads
ECOP (Environmental Code of Practice)
Declaration EPD (Environmental Product Declaration)
Technical manual
Others
Declaration DOC CE (Declaration of conformity CE)
Mounting instruction
Description
TeSys GS fuse switch-disconnector, 3 poles (3P), 100A/750V, to be used with class J fuse links up to 100A, for motor applications up to 51kW@400V AC-23. To be equipped with an external front side mounting operating handle GS2AH (several models available). It provides screw terminals with 3P terminal shrouds, high short circuit current rating 200kA@600V. Add-on auxiliary contact modules, front mounting GS1AM (early-break and position signaling), side mounting GS1AN (position signaling) can complete the assembly (to be ordered separately). UL/CSA certified, Green Premium compliant (RoHS/REACh).
