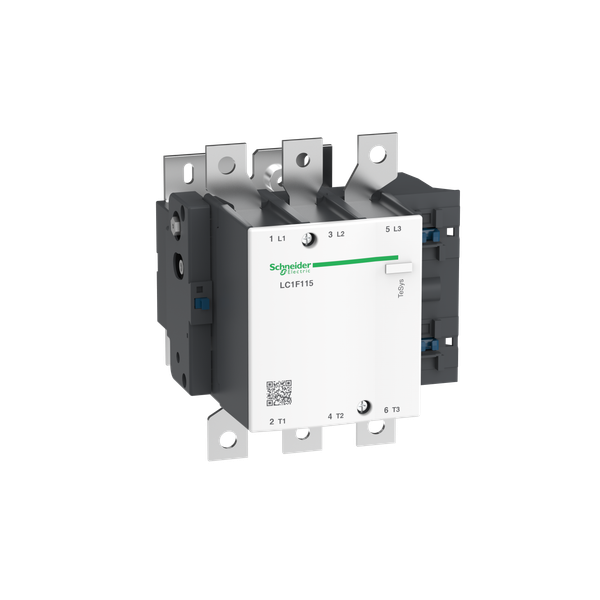

TeSys F contactor - 3P (3 NO) - AC-3 - = 440 V 115 A - coil 230 V AC
Order only
Price (excl. VAT):
605,52 €
EAN: 3389110374858
MPN: LC1F115P7
Package: 1
Pallet: 18
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | TeSys F contactor - 3P (3 NO) - AC-3 - = 440 V 115 A - coil 230 V AC |
| Brand | Schneider Electric |
| Categories |
AC Power Contactors
|
| Country of origin* | CZ |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 4900 00 |
| Rated operation power at AC-3, 400 V | 55 kW |
| Number of normally open contacts as main contact | 3 |
| Number of normally closed contacts as main contact | 0 |
| Rated operation current Ie at AC-3, 400 V | 115 A |
| Rated control supply voltage at AC 50 Hz | 230 V |
| Rated control supply voltage at AC 60 Hz | 230 V |
| Type of electrical connection of main circuit | Bolt connection |
| Voltage type for actuating | AC |
Packing details
| Packing level 1 | 3389110374858 |
| Packing level 2 | 3389110374858 |
Other Technical data
| Modular version | No |
| Number of auxiliary contacts as normally open contact | 0 |
| Number of auxiliary contacts as normally closed contact | 0 |
| Rated operation current Ie at AC-1, 400 V | 200 A |
| Rated operation current Ie at AC-4, 400 V | 40 A |
| Rated operation power at AC-4, 400 V | 18.5 kW |
| Rated operation power NEMA | 0 kW |
Downloads
ECOP (Environmental Code of Practice)
Declaration EPD (Environmental Product Declaration)
Declaration DOC CE (Declaration of conformity CE)
Technical manual
Others
Mounting instruction
Description
TeSys F contactor, 3 poles (3NO), 115A/690V AC-3, for motor applications up to 55kW@400V. It provides a low sealed consumption 230V 40-400Hz AC coil, bolt terminals for bars or cables with lugs. For high operating rates until 2400 cycles/hour and environments until 55°C, it procures high reliability and durability. It makes installation and maintenance easy thanks to its drawer-mounted coil and a large choice of add-on blocks and accessories (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
