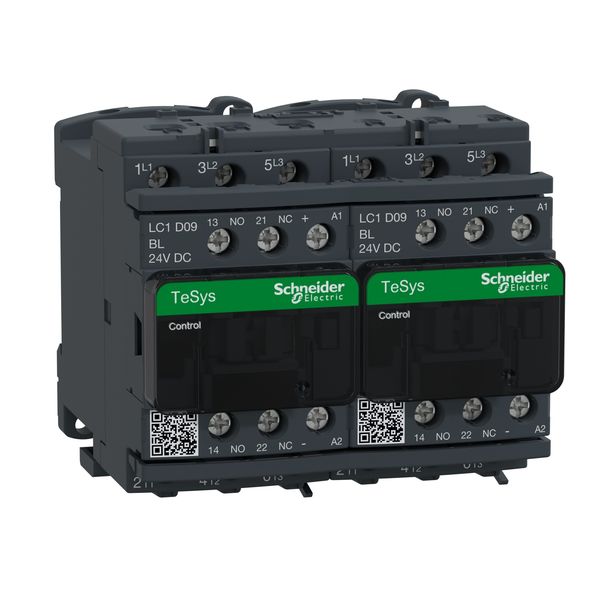

TeSys Deca reversing contactor - 3P(3 NO) - AC-3 - = 440 V 9 A - 24 V low consumption DC coil
In stock: Yes
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
132,10 €
EAN: 3389110541410
MPN: LC2D09BL
Package: 1
Box: 6
Pallet: 96
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | TeSys Deca reversing contactor - 3P(3 NO) - AC-3 - = 440 V 9 A - 24 V low consumption DC coil |
| Brand | Schneider Electric |
| Categories |
Combined Contactors
|
| Country of origin | FR |
| Harmonized System Code | 8536 4900 00 |
| Function | Reversing contactor |
| Rated operation power at AC-3, 400 V | 4 kW |
| Rated operation current Ie at AC-3, 400 V | 9 A |
| Rail mounting possible | Yes |
| Rated control supply voltage at DC | 24 V |
| Degree of protection (IP) | IP20 |
| Type of electrical connection of main circuit | Screw connection |
| Voltage type for actuating | DC |
Packing details
| Packing level 1 | 3389110541410 |
| Packing level 2 | 3389110541418 |
| Packing level 3 | 3389110541410 |
Other Technical data
| Number of normally open contacts as main contact | 0 |
| Number of normally closed contacts as main contact | 0 |
| Rated operation current Ie at AC-1, 400 V | 0 A |
| Type of electrical connection for auxiliary- and control current circuit | Screw connection |
| Degree of protection (NEMA) | Other |
| Rated operation power NEMA | 3.73 kW |
Downloads
ECOP (Environmental Code of Practice)
Declaration EPD (Environmental Product Declaration)
Declaration DOC CE (Declaration of conformity CE)
Technical manual
Others
Mounting instruction
Description
TeSys D reversing contactor, 3 poles (3NO), for motor control applications up to 9A/690V AC-3 (4kW@400V). It provides low consumption 24V DC coils with transient suppressor module, 2NO+2NC built-in auxiliary contacts (NC mirror contacts), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (90mm width), DIN-rail mounting or screw fixing. With pre-wired reversing power connections, mechanical interlock (without electrical interlocking). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
