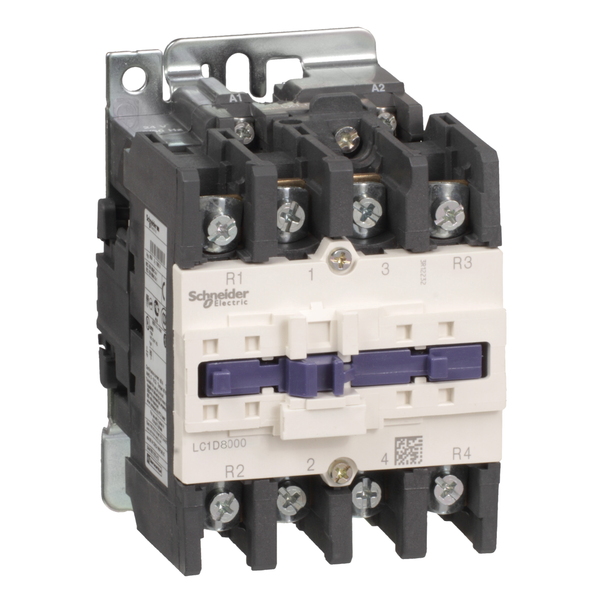

TeSys Deca contactor , 4P(2 NO + 2 NC) , AC-1 = 440V, 125A, 110V AC 50/60 Hz coil image 1
MD01 image 2
TeSys Deca contactor , 4P(2 NO + 2 NC) , AC-1 = 440V, 125A, 110V AC 50/60 Hz coil image 3
TeSys Deca contactor , 4P(2 NO + 2 NC) , AC-1 = 440V, 125A, 110V AC 50/60 Hz coil image 4
TeSys Deca contactor , 4P(2 NO + 2 NC) , AC-1 = 440V, 125A, 110V AC 50/60 Hz coil image 5
TeSys Deca contactor , 4P(2 NO + 2 NC) , AC-1 = 440V, 125A, 110V AC 50/60 Hz coil thumbnail 1
MD01 thumbnail 2
TeSys Deca contactor , 4P(2 NO + 2 NC) , AC-1 = 440V, 125A, 110V AC 50/60 Hz coil thumbnail 3
TeSys Deca contactor , 4P(2 NO + 2 NC) , AC-1 = 440V, 125A, 110V AC 50/60 Hz coil thumbnail 4
TeSys Deca contactor , 4P(2 NO + 2 NC) , AC-1 = 440V, 125A, 110V AC 50/60 Hz coil thumbnail 5
Schneider Electric

TeSys Deca contactor , 4P(2 NO + 2 NC) , AC-1 = 440V, 125A, 110V AC 50/60 Hz coil

Order only
Price (excl. VAT):
464,71 €
This price is valid until 31.12.25
EAN: 3389110075137
MPN: LC1D80008F7
Package: 1
Box: 5
Estimate delivery time at our warehouse (approx.): By request

Technical Information

Item condition New
Manufacture name TeSys Deca contactor , 4P(2 NO + 2 NC) , AC-1 = 440V, 125A, 110V AC 50/60 Hz coil
Brand Schneider Electric
Categories AC Power Contactors
Country of origin CZ
Harmonized System Code 8536 4900 00
Rated operation power at AC-3, 400 V 0 kW
Number of normally open contacts as main contact 2
Number of normally closed contacts as main contact 2
Rated operation current Ie at AC-3, 400 V 0 A
Rated control supply voltage at AC 50 Hz 110 V
Rated control supply voltage at AC 60 Hz 110 V
Type of electrical connection of main circuit Screw connection
Voltage type for actuating AC

Packing details

Packing level 1 3389110075137
Packing level 2 3389110075134

Other Technical data

Modular version No
Number of auxiliary contacts as normally open contact 0
Number of auxiliary contacts as normally closed contact 0
Rated operation current Ie at AC-1, 400 V 125 A
Rated operation current Ie at AC-4, 400 V 0 A
Rated operation power at AC-4, 400 V 0 kW
Rated operation power NEMA 0 kW

Downloads

ECOP (Environmental Code of Practice) Declaration DOC CE (Declaration of conformity CE) Technical manual Declaration EPD (Environmental Product Declaration) Mounting instruction

Description

TeSys Deca contactor, 4-pole (2NO+2NC), for non-inductive load applications up to 125A/1000V AC-1. It provides a 110V 50/60Hz AC coil, power connection by screw terminals, control connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (96mm width), DIN-rail mounting or screw fixing. Without build-in auxiliary contacts, side and front mounting auxiliary contact blocks available (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
