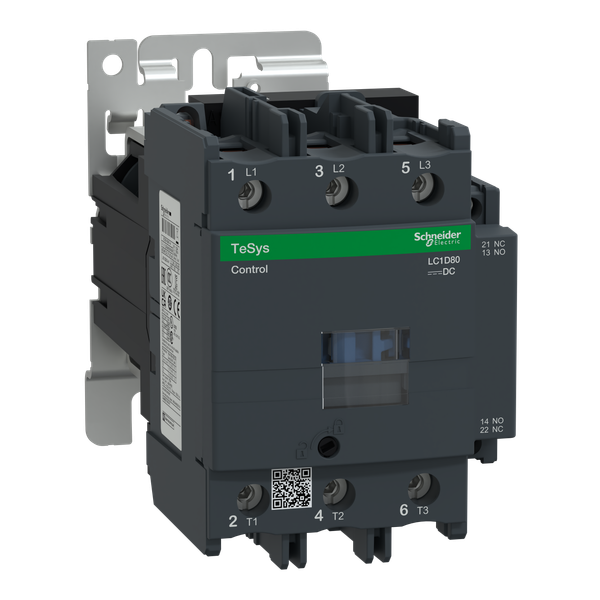

Contactor TeSys D 3P 80A 1NO+1NC coil 24V DC
In stock
In vendor's stock
Price (excl. VAT):
281,65 €
EAN: 3389110439977
MPN: LC1D80BD
Package: 1
Box: 2
Pallet: 32
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | Contactor TeSys D 3P 80A 1NO+1NC coil 24V DC |
| Brand | Schneider Electric |
| Categories |
AC Power Contactors
|
| Country of origin* | CZ |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 4190 00 |
| Rated operation power at AC-3, 400 V | 37 kW |
| Number of normally open contacts as main contact | 3 |
| Number of normally closed contacts as main contact | 0 |
| Rated operation current Ie at AC-3, 400 V | 80 A |
| Rated control supply voltage at DC | 24 V |
| Type of electrical connection of main circuit | Screw connection |
| Voltage type for actuating | DC |
Packing details
| Packing level 1 | 3389110439977 |
| Packing level 2 | 3389110439975 |
| Packing level 3 | 3389110439977 |
Other Technical data
| Modular version | No |
| Number of auxiliary contacts as normally open contact | 1 |
| Number of auxiliary contacts as normally closed contact | 1 |
| Rated operation current Ie at AC-1, 400 V | 125 A |
| Rated operation current Ie at AC-4, 400 V | 32 A |
| Rated operation power at AC-4, 400 V | 15 kW |
| Rated operation power NEMA | 0 kW |
Downloads
ECOP (Environmental Code of Practice)
Declaration DOC CE (Declaration of conformity CE)
Instructions for use
Technical manual
Declaration EPD (Environmental Product Declaration)
Mounting instruction
Description
TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 80A/1000V AC-3/AC-3e (37kW@400V). It provides a 24V DC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), power connection by screw terminals, control connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (85mm width), DIN-rail mounting or screw fixing. Multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHs/Reach).
