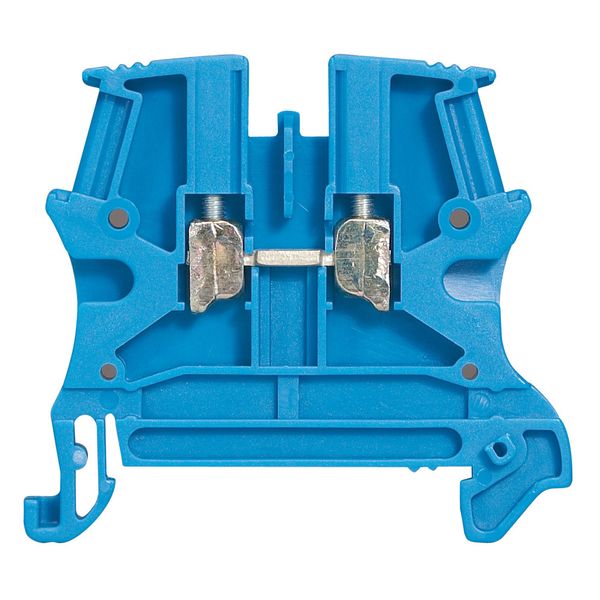

Terminal block Viking 3 - screw - 1 connect - 1 entry/1 outlet - pitch 8 - blue
In vendor's stock
Minimal order quantity: 40
Price (excl. VAT):
0,54 €
per pcs
Subtotal: 21,60 €
MOQ: 40
EAN: 3245060371029
MPN: 037102
Package: 40
Box: 680
Pallet: 6800
Estimate delivery time at our warehouse (approx.):
2-4 weeks
Technical Information
| Item condition | New |
| Manufacture name | Terminal block Viking 3 - screw - 1 connect - 1 entry/1 outlet - pitch 8 - blue |
| Brand | Legrand |
| Categories |
DIN Rail Terminal Blocks
|
| Country of origin* | FR |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8538 9099 00 |
| Mounting method | DIN rail (top hat rail) 35 mm |
| Rated voltage | 800 V |
| Type of electrical connection 1 | Screw connection |
| Type of electrical connection 2 | Screw connection |
| Number of levels | 1 |
| Number of clamp positions per level | 2 |
| Connectable conductor cross section solid-core | 0.5-10 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve | 0.25-6 mm² |
| Connectable conductor cross section fine-strand without cable end sleeve | 0.25-10 mm² |
| Connectable conductor cross section multi-wired | 0.25-6 mm² |
| Rated current In | 41 A |
Packing details
| Packing level 1 | 3414971444423 |
| Packing level 2 | 3414972339001 |
| Packing level 3 | 3245060371029 |
Other Technical data
| Colour | Blue |
| Width | 8 mm |
| Height | 46.5 mm |
| Depth | 52.5 mm |
| Operating temperature | -5-40 °C |
| Inflammability class of insulation material according to with UL94 | V2 |
| Closing plate required | Yes |
| Internally connected stages | No |
| Material insulation body | Thermoplastic |
| Explosion-tested version 'Ex e' | Yes |
