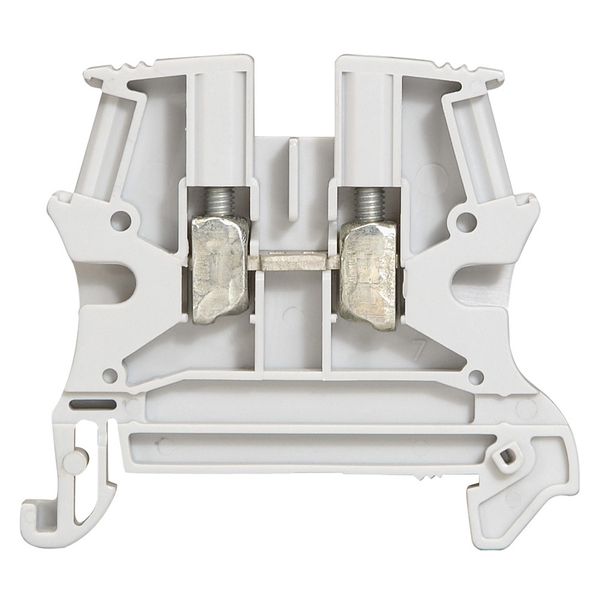

Terminal block Viking 3 - screw - 1 connect - 1 entry/1 outlet - pitch 6 - grey
In vendor's stock
Minimal order quantity: 50
Price (excl. VAT):
0,358 €
per pcs
Subtotal: 17,90 €
MOQ: 50
EAN: 3245060371616
MPN: 037161
Package: 50
Box: 1000
Pallet: 20000
Estimate delivery time at our warehouse (approx.):
2-4 weeks
Technical Information
| Item condition | New |
| Manufacture name | Terminal block Viking 3 - screw - 1 connect - 1 entry/1 outlet - pitch 6 - grey |
| Brand | Legrand |
| Categories |
DIN Rail Terminal Blocks
|
| Country of origin* | FR |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8538 9099 00 |
| Mounting method | DIN rail (top hat rail) 35 mm |
| Rated voltage | 800 V |
| Type of electrical connection 1 | Screw connection |
| Type of electrical connection 2 | Screw connection |
| Number of levels | 1 |
| Number of clamp positions per level | 2 |
| Connectable conductor cross section solid-core | 0.25-6 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve | 0.25-4 mm² |
| Connectable conductor cross section fine-strand without cable end sleeve | 0.25-6 mm² |
| Connectable conductor cross section multi-wired | 0.25-4 mm² |
| Rated current In | 32 A |
Packing details
| Packing level 1 | 3414971431492 |
| Packing level 2 | 3414971431508 |
| Packing level 3 | 3414971431515 |
Other Technical data
| Colour | Grey |
| Width | 6 mm |
| Height | 46.5 mm |
| Depth | 52.5 mm |
| Operating temperature | -5-40 °C |
| Inflammability class of insulation material according to with UL94 | V2 |
| Closing plate required | Yes |
| Internally connected stages | No |
| Material insulation body | Thermoplastic |
| Explosion-tested version 'Ex e' | Yes |
Description
This component is designed to regulate and distribute electrical power efficiently within a system, ensuring stable operation for connected devices. It functions as an intermediate module that conditions input voltage and provides output suitable for sensitive electronics or subsystems.
**Electrical Characteristics**
Input Voltage Range: Supports a variable range of 12V to 48V DC—highly adaptable for different sources. Output Voltage Regulation: Delivers consistent 5V DC with minimal ripple under standard load conditions. Efficiency Rating: Operates at up to 92% conversion efficiency during peak output; varies with load requirements.
**Physical and Mechanical Properties**
Dimensions: Compact form factor measuring 50mm x 40mm x 15mm, ideal for confined spaces in industrial enclosures. Material Construction: Made from heat-resistant PCB substrate; includes anodized aluminum casing for improved thermal dissipation. Mounting Interface: Includes four M3 mounting holes spaced at industry-standard intervals; integrates well into pre-designed panels.
### Technical Notes and Limitations:
- Maximum current output is rated at 3A—exceeding this can cause overheating or failure.
- Requires external heat sink if operating above ambient temperatures of 75°C continuously.
- Designed solely for DC input/output systems—cannot work with AC power sources without converters.
- Input voltage below the stated minimum compromises stability of regulated output supply channels.
- Intended only for environments free from extreme dust or moisture exposure—not IP-rated unit.
