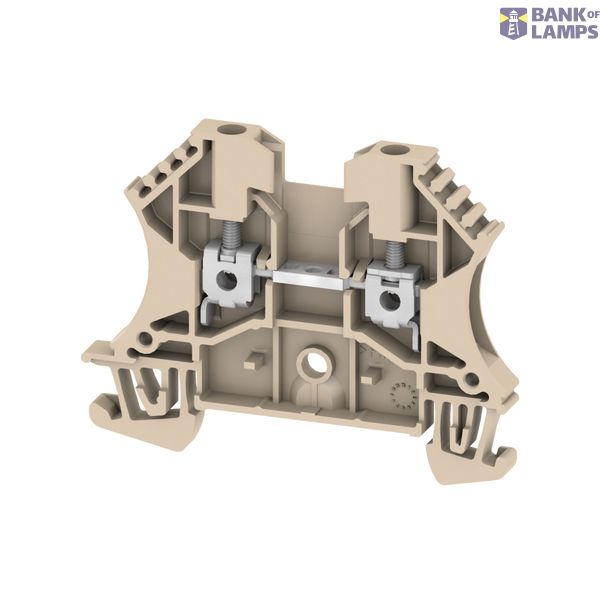

Terminal block 2.5 mm² phase, 800V/24A, screw

Order only

EAN: 3250610133439

MPN: KR025L

Package: 1

Price (excl. VAT)

0,67 €

per unit

MOQ: 1

EDT to our warehouse: 4-6 weeks

Price valid until 01.01.99 or while in stock

Technical Information

Item condition	New
Manufacture name	Terminal block 2.5 mm² phase, 800V/24A, screw
Brand	Hager
Categories	DIN Rail Terminal Blocks
Country of origin*	DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8536 9010 00
ETIM	EC000897
Mounting method	DIN rail (top hat rail)/G-rail TH35/G32
Rated voltage	800 V
Type of electrical connection 1	Screw connection
Type of electrical connection 2	Screw connection
Number of levels	1
Number of clamp positions per level	2
Connectable conductor cross section solid-core	0.5-4 mm²
Connectable conductor cross section fine-strand with cable end sleeve	0.5-2.5 mm²
Connectable conductor cross section fine-strand without cable end sleeve	0.5-4 mm²
Connectable conductor cross section multi-wired	0.5-4 mm²
Rated current In	24 A

Packing level 1

3250610133439, 3250610133439

Colour	Beige
Width	5.1 mm
Height	47 mm
Depth	60 mm
Operating temperature	-60-130 °C
Closing plate required	Yes
Internally connected stages	No
Material insulation body	Thermoplastic
Explosion-tested version 'Ex e'	Yes
