Zumtobel

TECTON ASI5 M-SET - special suspension

In stock: No Vendor stock: No Minimal order quantity: 1
Price (excl. VAT):
132,86 €
This price is valid until 24.12.25
EAN: 9010299171832
MPN: 22171354
Package: 1
Estimate delivery time at our warehouse (approx.): By request

Technical Information

Item condition New
Manufacture name TECTON ASI5 M-SET - special suspension
Brand Zumtobel
Categories Luminaire accessories
Luminaires
Country of origin AT
Harmonized System Code 9405 9900 00
Type of accessory/spare part Other

Packing details

Packing level 1 9010299171832, 9010299171832

Downloads

Deep link REACH Declaration RoHS Sales brochure

Videos

Description

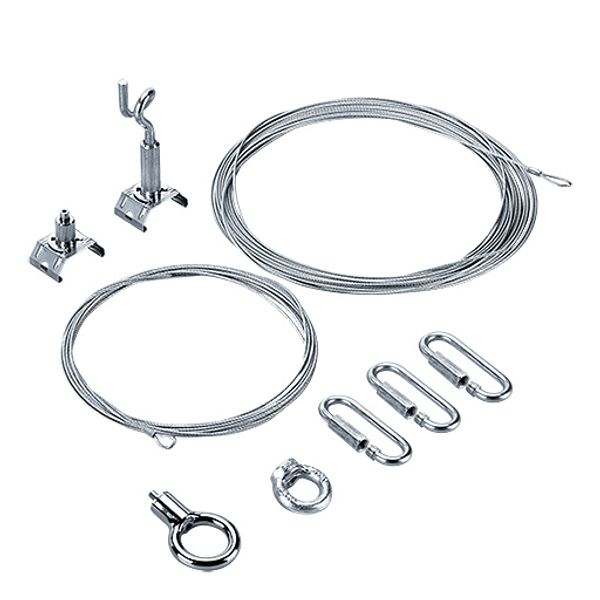

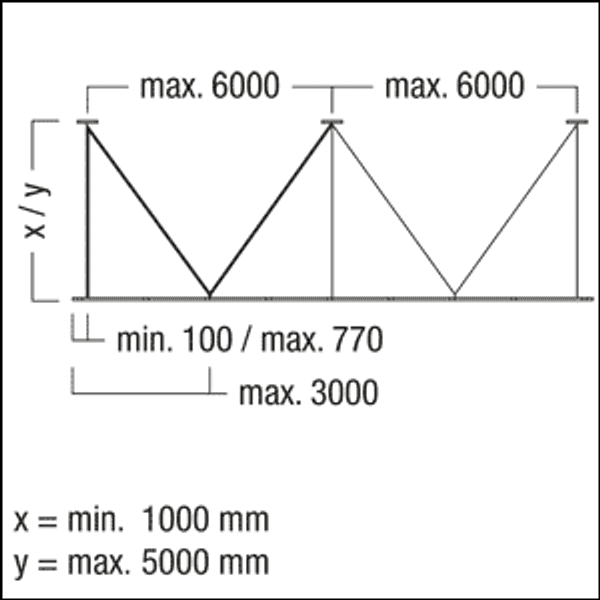

Cord suspension kit for implementing extended suspension distances on the ceiling (up to 6 m). Kit comprising: 1 x ring nut M8 (steel, galvanised), 1 x rapid connection link (steel, galvanised), 1 x 5 m cord with loop (steel, galvanised) and V2A fixing clip, 1 x 10 m cord with loop (steel, galvanised), V2A fixing clip and wire cord holder (nickel plated). Stepless height adjustment possible (1 m - 5 m). Cords can be cut to length. Maximum load per fixing clip: 20 kg. Maximum distance between fixing clips on the mounting rail: 3 m. Maximum distance between fixing points on the ceiling: 6 m. Weight of kit 0.7 kg. Please refer to the installation instructions.
