TEC C 8000-840 L1500 WB LDE WH IP64 - LED continuous-row luminaire
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
294,29 €
EAN: 9010299518033
MPN: 42187936
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | TEC C 8000-840 L1500 WB LDE WH IP64 - LED continuous-row luminaire |
| Brand | Zumtobel |
| Categories |
Batten luminaires
|
| Country of origin | AT |
| Harmonized System Code | 9405 1190 00 |
| Width | 72 mm |
| Colour rendering index CRI | 80-89 |
| Length | 1501 mm |
| Height/depth | 85 mm |
| Lamp type | LED not exchangeable |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP64 |
| Colour temperature | 4000 K |
| Max. system power | 46.1 W |
| Rated luminous flux according to IEC 62722-2-1 | 8100 lm |
Packing details
| Packing level 1 | 9010299518033, 9010299518033 |
Other Technical data
| Protection class | I |
| Lamp holder | None |
| Conductor cross section | 2.5 mm² |
| Connection type | Other |
| Colour housing | White |
| Voltage type | AC |
| With movement sensor | No |
| Type of control gear | LED operating device current-controlled |
| With switch | No |
| Material | Steel |
| Suitable for emergency lighting | No |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | Yes |
| Covering of the luminaire with thermally insulating material possible | Yes |
| Suitable for number of lamps | 1 |
| With control gear | Yes |
| Colour of light | White |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| Type of wiring | Ending |
| Rated life time L70/B50 at 25 °C | 100000 h |
| Filament test according to IEC 60695-2-11 | 650 °C - 30 s |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | Yes |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | Yes |
| No dim function | No |
| Dimming DSI | Yes |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 95 % |
| Colour temperature adjustable | No |
| Luminous flux adjustable | Continuously variable |
| Beam angle adjustable | No |
| Exchangeable control gear | Yes |
| Power factor | 0.96 |
Downloads
Description

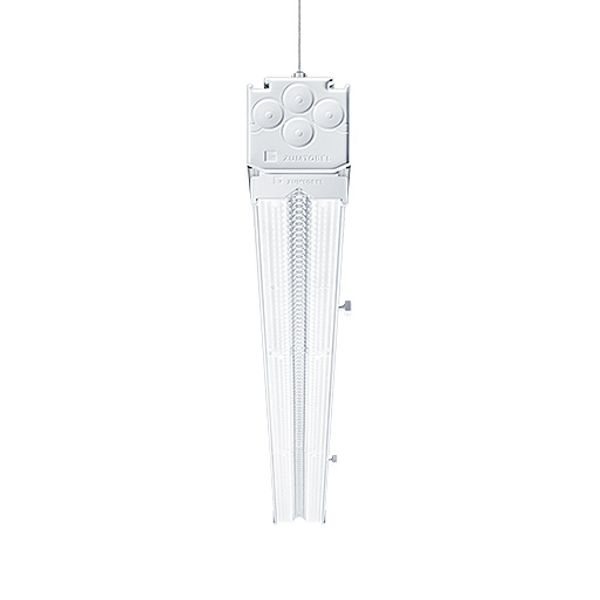

Linear, energy-efficient TECTON LED continuous-row luminaire in white with 64 highly efficient mid-power LEDs per segment. IP64 protection rating. Luminaire input power: 46.1 W, DALI controllable luminaire with LED converter, makes environmental and financial sense. LED service life lasts 100000 h before luminous flux is reduced to 95% of the initial value. Chromaticity tolerance (initial MacAdam): 2. Luminaire efficacy: 176 lm/W. Luminaire luminous flux: 8100 lm. Luminaire with symmetric wide light distribution (wide beam). Colour rendering Ra > 80, colour temperature 4000 K. Split lens concept for reducing perceived glare. Overlapping lenses made of PMMA with high breakage resistance and UV resistance. Dimming level for DC mode preset to 15 %. LED corrosion-protected continuous row luminaire made of roll-formed, hot-dip galvanised sheet steel, with zinc-magnesium coating and polyester lacquer finish in white. 100% flexible positioning of continuous row luminaires along the entire length of the continuous row. Tool-free mechanical and electrical installation on the mounting rail via two side levers. No ultraviolet or infrared radiation. Protection class: SC1. Permissible for use in environments where the deposition of conductive dust on the luminaire can be expected (EN 60598-2-24). Note: please talk to your adviser if you are planning to use in chemically contaminated ambient atmospheres or high or condensed atmospheric humidity. ambient temperature: -20°C to +35°C. Luminaire wired with halogen-free and silicone-free leads. Dimensions: 1501 x 72 x 85 mm. Weight: 2.2 kg.
Spareparts
9005798802295
9005798793548
9005798793531
