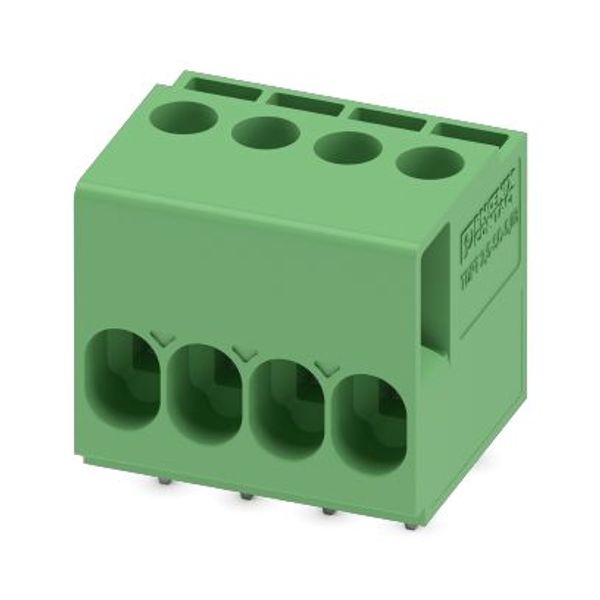

TDPT 2,5/ 4-SC-5,08 - PCB terminal block
In stock: No
Vendor stock: No
Minimal order quantity: 50
Price (excl. VAT):
0,95 €
per pcs
Subtotal: 47,50 €
MOQ: 50
EAN: 4055626500386
MPN: 1017493
Box: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | TDPT 2,5/ 4-SC-5,08 - PCB terminal block |
| Brand | Phoenix Contact |
| Categories |
PCB Connectors & Terminals
|
| Country of origin | CN |
| Harmonized System Code | 8536 9010 00 |
| Rated voltage | 400 V |
| Number of levels | 1 |
| Rated surge voltage | 4 kV |
| Angle PCB/conductor connection | Other |
| Rated current In | 24 A |
| Number of electrical connections | 4 |
Packing details
| Packing level 1 | 4055626500386, 4055626500386 |
Other Technical data
| Height | 22.5 mm |
| Colour housing | Green |
| Operating temperature | -40-105 °C |
| Inflammability class of insulation material according to with UL94 | V0 |
| Over voltage category | III |
| Pollution degree | 2 |
| Connection type conductor | Screw connection |
| Diameter connection pin | 1.4 mm |
| Length pin | 3.5 mm |
| Material connection surface | Tin |
| Modular spacing connections | 5.08 mm |
| Type of banding | Carton (for SMD) |
| Connectable conductor cross section solid-core | 0.2-4 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve | 0.2-2.5 mm² |
| Connectable conductor cross section fine-strand without cable end sleeve | 0.2-2.5 mm² |
| Connectable conductor cross section multi-wired | 0.2-1.5 mm² |
| Material insulation body | Other |
| Type of PCB fastening | Connecting contact |
Description
PCB terminal block, nominal current: 24 A, rated voltage (III/2): 400 V, nominal cross section: 2.5 mm², number of potentials: 4, number of rows: 1, number of positions per row: 4, product range: TDPT 2,5/..-SC, pitch: 5.08 mm, connection method: Screw connection with tension sleeve, screw head form: L Slotted, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 3.5 mm, number of solder pins per potential: 2, type of packaging: packed in cardboard
