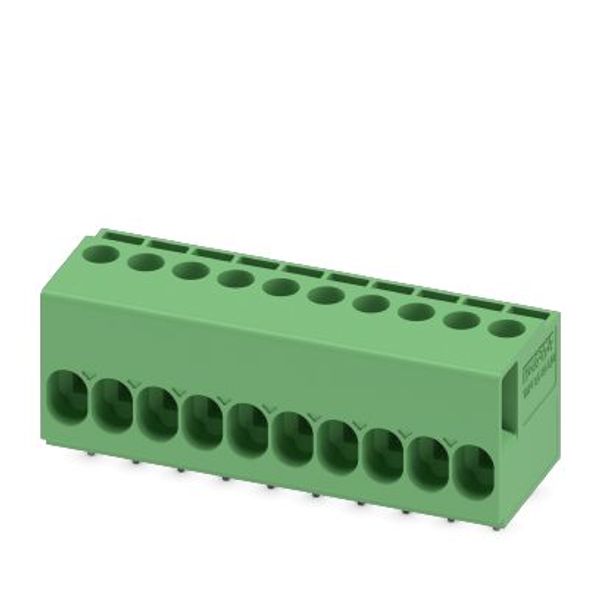

TDPT 2,5/ 10-SC-5,08 - PCB terminal block
Order only
Minimal order quantity: 50
Price (excl. VAT):
2,36 €
per pcs
Subtotal: 118,00 €
MOQ: 50
EAN: 4055626501345
MPN: 1017499
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | TDPT 2,5/ 10-SC-5,08 - PCB terminal block |
| Brand | Phoenix Contact |
| Categories |
PCB Connectors & Terminals
|
| Country of origin | CN |
| Harmonized System Code | 8536 9010 00 |
| Height | 22.5 mm |
| Colour housing | Green |
| Operating temperature | -40-105 °C |
| Inflammability class of insulation material according to with UL94 | V0 |
| Connection type conductor | Screw connection |
| Connectable conductor cross section solid-core | 0.2-4 mm² |
| Connectable conductor cross section fine-strand without cable end sleeve | 0.2-2.5 mm² |
| Connectable conductor cross section multi-wired | 0.2-1.5 mm² |
| Material insulation body | Other |
| Type of PCB fastening | Connecting contact |
Packing details
| Packing level 1 | 4055626501345, 4055626501345 |
Description
PCB terminal block, nominal current: 24 A, rated voltage (III/2): 400 V, nominal cross section: 2.5 mm², number of potentials: 10, number of rows: 1, number of positions per row: 10, product range: TDPT 2,5/..-SC, pitch: 5.08 mm, connection method: Screw connection with tension sleeve, screw head form: L Slotted, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green, Pin layout: Linear double pinning, Solder pin [P]: 3.5 mm, number of solder pins per potential: 2, type of packaging: packed in cardboard
Accessories
Order only
Phoenix Contact
SZF 1-0,6X3,5 - Screwdriver
5,15 €
per pcs
EAN: 4017918018948
MPN: 1204517
Box: 1
