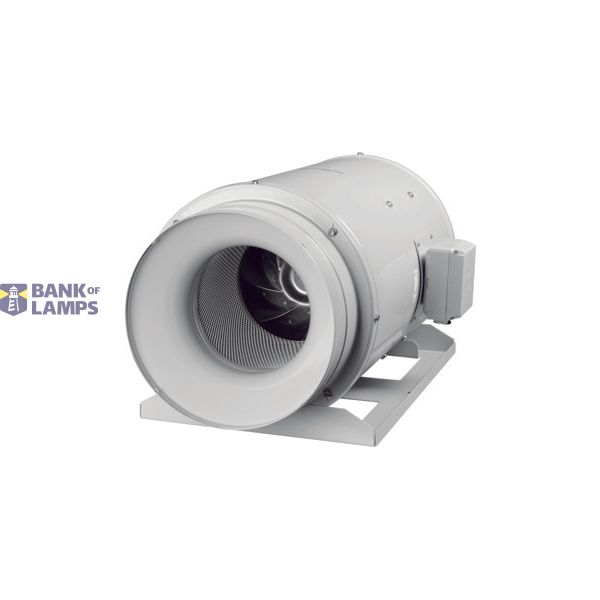

TD-2000/315 SILENT (230V50/60HZ) VE

Name: TD-2000/315 SILENT (230V50/60HZ) VE
Brand: S&P
Availability: PreOrder

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	TD-2000/315 SILENT (230V50/60HZ) VE
Brand	S&P
Country of origin*	NL
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
ETIM	EC011013
Power consumption	0.296 kW
Connection	Insert end
Length	825 mm
Housing material	Steel-treated
Connection voltage	230 V
Electrical connection	Terminals
Degree of protection (IP)	IP44
With thermal protection	Yes
Diameter, housing	432 mm
Air volume, unloaded	1770 m³/h
Air volume at pressure 2	1047.07 m³/h
Air volume at pressure 3	22 m³/h
Pressure 2	325 Pa
Pressure 3	700 Pa
Suitable for electronic control	No
Suitable for transformer control	Yes
Duct diameter	312 mm
Max. air temperature	60 °C
Indirect drive	No
Direct-current motor	No
Pole-reversible	No
Suitable for low-current control	Yes
Suitable for frequency control	No
2-speed motor	No

Packing level 1

8413893476173
