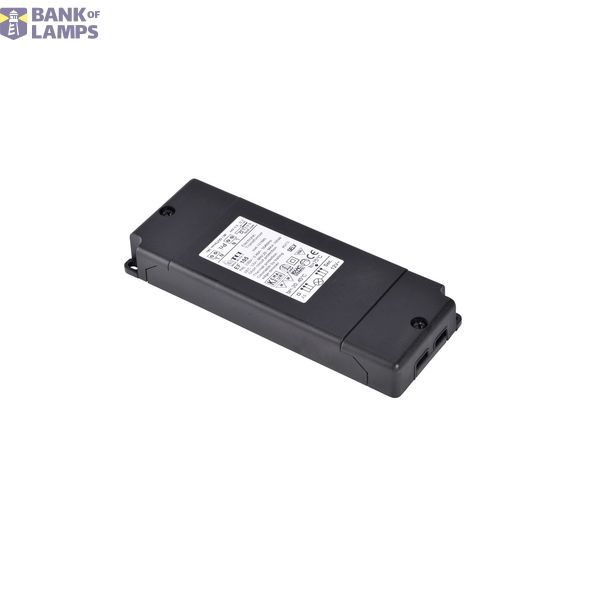

TCI electronic transformer, 105VA, 12V, incl. strain-relief
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | TCI electronic transformer, 105VA, 12V, incl. strain-relief |
| Brand | SLV |
| Country of origin* | IT |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8504 3180 00 |
| ETIM | EC001500 |
| Colour | Black |

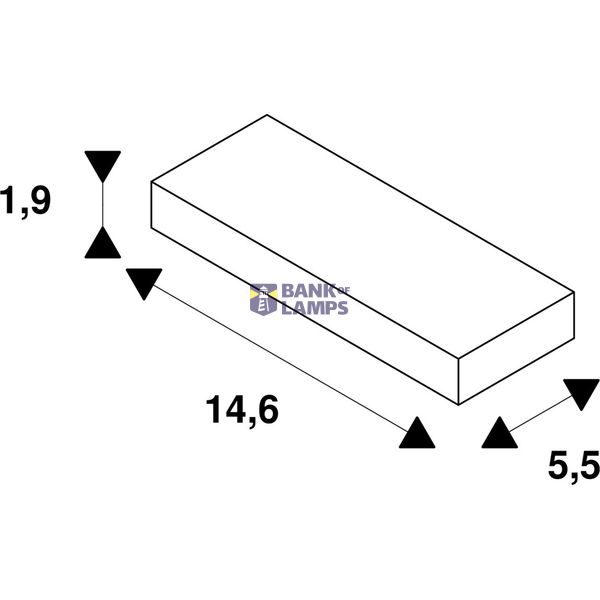

| Width | 55 mm |
| Height | 19 mm |
| Type of transformer | Electronic transformer |
| Connection type primary side | Screw connection |
| Connection type secondary side | Screw connection |
| Diameter | 0 mm |
| Length | 146 mm |
| Housing material | Plastic |
| Surface-mounted | No |
| Built-in | No |
| Short-circuit protected | Yes |
| With secondary automatic circuit breaker | No |
| Number of output positions (pairs) | 3 |
| Input voltage | 230 V |
| Output voltage | 12 V |
| Power | 105 W |
| Degree of protection (IP) | IP20 |
| Safety transformer | Yes |
| Overload protection | No |
| Overtemperature protection | Yes |
| IFTTT support available | No |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming GPRS | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | No |
| Dimming DSI | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
Packing details
| Packing level 1 | 4024163149662 |
Downloads
Description
Dimmable, 12V TCI low voltage electronic transformer with especially flat profile, screw-type terminal and an output range of 20-105W.
