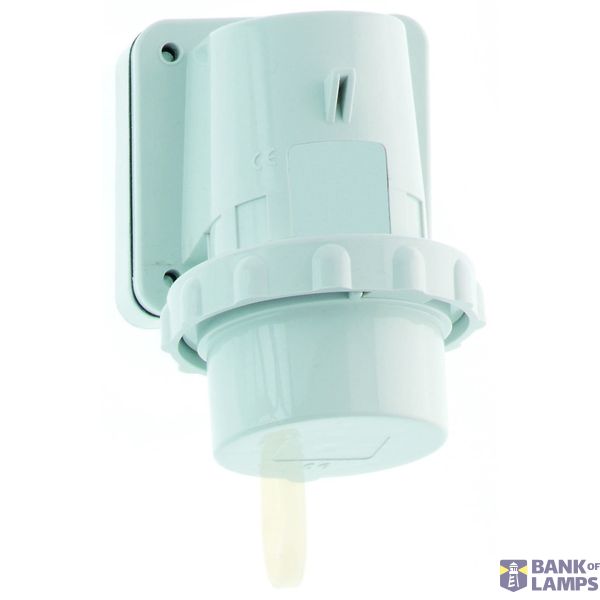

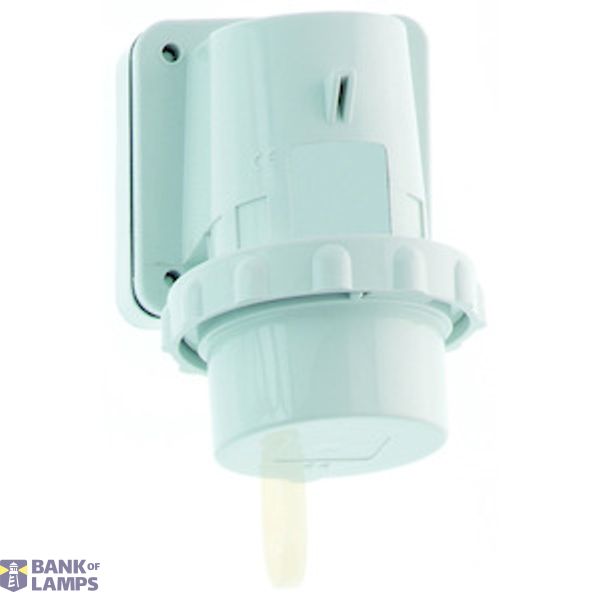

TCD 6h 16A 3P 230V IP67 87x64 Opb Ni Kap
Order only
Not Available
Technical Information
| Item condition | New |
| Manufacture name | TCD 6h 16A 3P 230V IP67 87x64 Opb Ni Kap |
| Brand | Bals |
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 6990 00 |
| ETIM | EC001319 |
| Material | Plastic |
| Surface treatment contacts | Nickel-plated |
| IEC-amperage | 16 A |
| Connection system | Screwed terminal |
| Contact material | CuZn |
| Degree of protection (IP) | IP67 |
| Military model | No |
| Voltage according to EN 60309-2 | 230 V (50+60 Hz) blue |
Packing details
| Packing level 1 | 4024941024853 |
Other Technical data
| RAL-number | 5015 |
| Construction type | Other |
| Number of poles | 3 |
| Rated frequency | 50-60 Hz |
| Angle of plug | Angled |
| Phase inverter | No |
| Clock hour position | 6 h |
| Identification colour | Blue |
Downloads
Description
- Schroefklemmen
- Met afdekdop
- Vernikkelde contacten
- Klem voor aders 1 t/m 2.5 qmm bij 16A en 2,5 t/m 6 qmm bij 32A
- Beschermingsklasse IP67
- Met afdekdop
- Vernikkelde contacten
- Klem voor aders 1 t/m 2.5 qmm bij 16A en 2,5 t/m 6 qmm bij 32A
- Beschermingsklasse IP67
