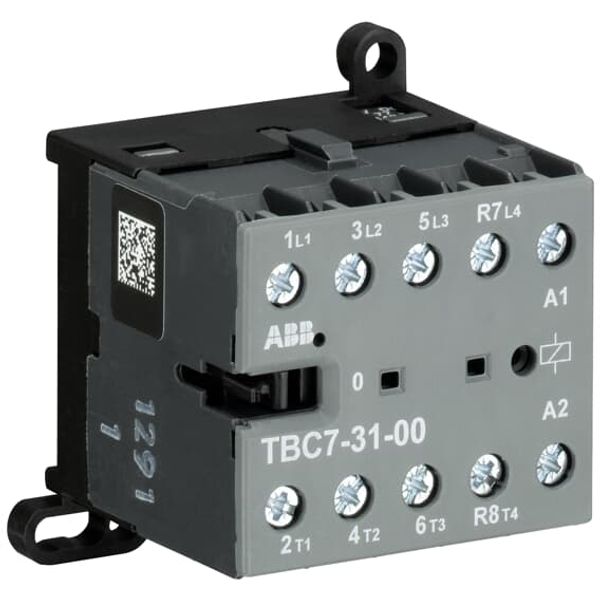

TBC7-31-00-55 Mini Contactor 50 ... 90 V DC - 3 NO - 1 NC - Screw Terminals

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

45,69 € per pcs

This price is valid until 31.12.30

EAN: 4013614264276

MPN: GJL1313461R5005

Package: 1

Box: 10

Estimate delivery time at our warehouse (approx.): By request

Technical Information

Item condition	New
Manufacture name	TBC7-31-00-55 Mini Contactor 50 ... 90 V DC - 3 NO - 1 NC - Screw Terminals
Brand	ABB
Categories	AC Power Contactors
Harmonized System Code	8536 5080 00
Rated operation power at AC-3, 400 V	5.5 kW
Number of normally open contacts as main contact	3
Number of normally closed contacts as main contact	1
Rated operation current Ie at AC-3, 400 V	12 A
Rated control supply voltage at DC	50-90 V
Type of electrical connection of main circuit	Screw connection
Voltage type for actuating	DC

Packing details

Packing level 1	4013614264276
Packing level 2	4013614419027

Other Technical data

Modular version	No
Number of auxiliary contacts as normally open contact	0
Number of auxiliary contacts as normally closed contact	0
Rated operation current Ie at AC-1, 400 V	20 A
Rated operation power NEMA	2.2371 kW

Downloads

Others

Description

The TBC7-31-00 mini contactor is a compact 4 pole contactor with screw terminals. They are ideally suited for applications where reliability is a must and space is at a premium. Mini contactors are used in residential buldings, commercial buildings and industrial applications for the control of single or three-phase loads up to 5.5 kW (AC-3) and 20 A / 690 V (AC-1) or switching of control signals. Further features are the noiseless and hum-free coil, a switch position indication and the integrated possibility for rail or wall mounting.
