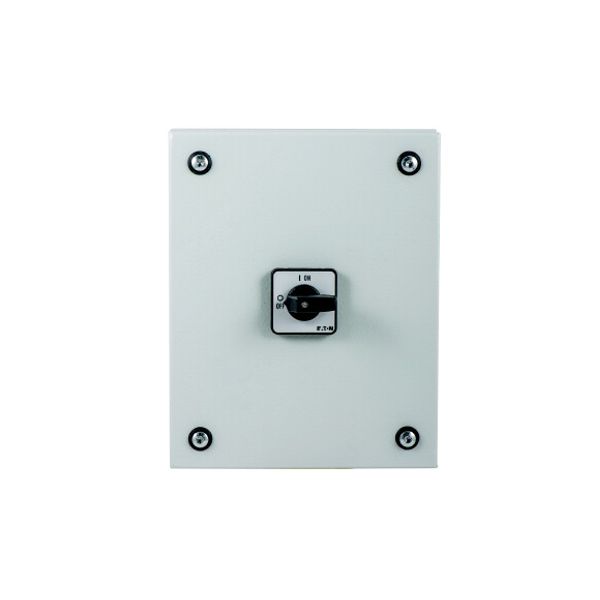

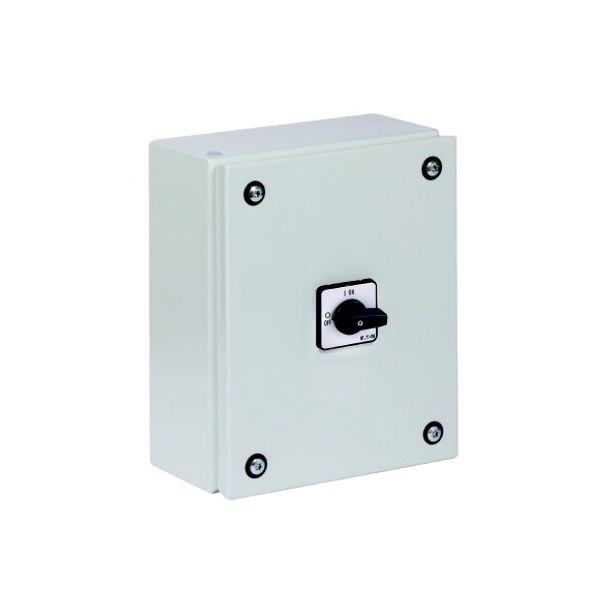

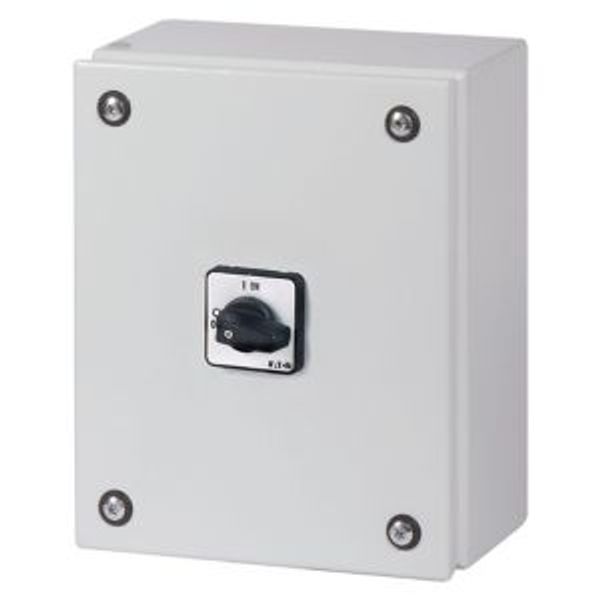

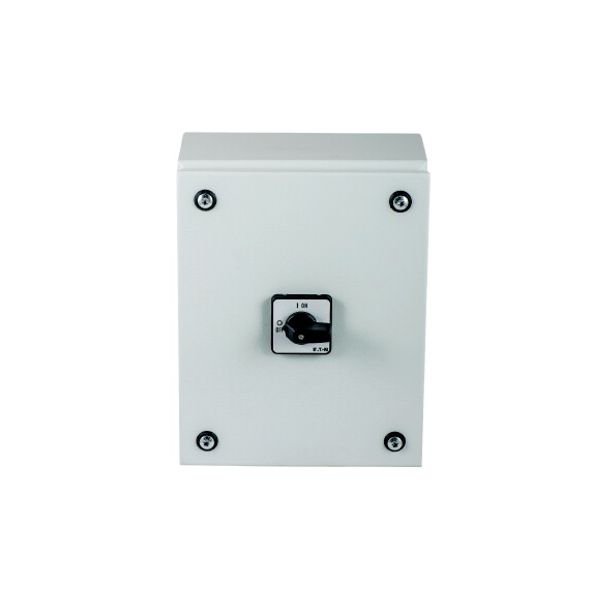

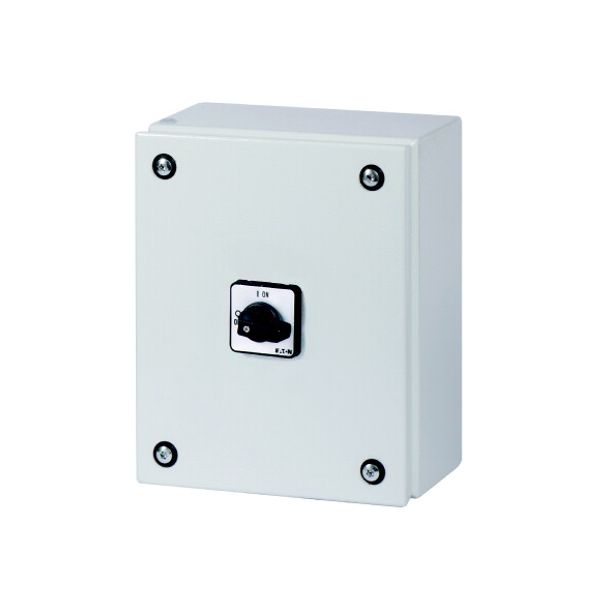

T3-4-8344/SE2 T3, 32 A, surface mounting, 4 contact unit(s), 90 °, maintained, 0-1, in steel enclosure, Design number 8344
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
147,21 €
EAN: 4015080895961
MPN: 197459
Package: 1
Estimate delivery time at our warehouse (approx.):
1-4 weeks
Technical Information
| Item condition | New |
| Manufacture name | T3-4-8344/SE2 T3, 32 A, surface mounting, 4 contact unit(s), 90 °, maintained, 0-1, in steel enclosure, Design number 8344 |
| Brand | EATON |
| Categories |
Switch Disconnectors
|
| Country of origin | GB |
| Harmonized System Code | 8536 5080 00 |
| Rated permanent current Iu | 32 A |
| Number of poles | 8 |
| Rated operating voltage | 690 V |
| Degree of protection (IP), front side | IP65 |
| Version as main switch | No |
| Version as safety switch | No |
| Version as maintenance-/service switch | No |
| Rated short-time withstand current lcw | 0.65 kA |
Packing details
| Packing level 1 | 4015080895961 |
Other Technical data
| Width | 200 |
| Height | 147 |
| Depth | 250 |
| Rated operation power at AC-3, 400 V | 11 kW |
| Number of auxiliary contacts as normally open contact | 0 |
| Number of auxiliary contacts as normally closed contact | 0 |
| Conditioned rated short-circuit current Iq | 1 kA |
| Number of auxiliary contacts as change-over contact | 0 |
| Number of switches | 1 |
| Interlockable | No |
| Motor drive integrated | No |
| Type of electrical connection of main circuit | Screw connection |
| Version as emergency stop installation | No |
| Type of control element | Short thumb-grip |
| Rated operation power at AC-23, 400 V | 15 kW |
| Colour control element | Black |
| Suitable for floor mounting | Yes |
| Suitable for front mounting 4-hole | No |
| Suitable for front mounting centre | No |
| Suitable for distribution board installation | No |
| Suitable for intermediate mounting | No |
| Max. rated operation voltage Ue AC | 690 V |
| Motor drive optional | No |
| Voltage release optional | No |
| Device construction | Complete device in housing |
| Rated permanent current at AC-21, 400 V | 32 A |
| Switching power at 400 V | 15 kW |
| Version as reversing switch | No |
| Rated permanent current at AC-23, 400 V | 32 A |
| Degree of protection (NEMA) | 12 |
| With pre-assembled cabling | No |
Description
T3, 32 A, surface mounting, 4 contact unit(s), 90 °, maintained, 0-1, in steel enclosure, Design number 8344
