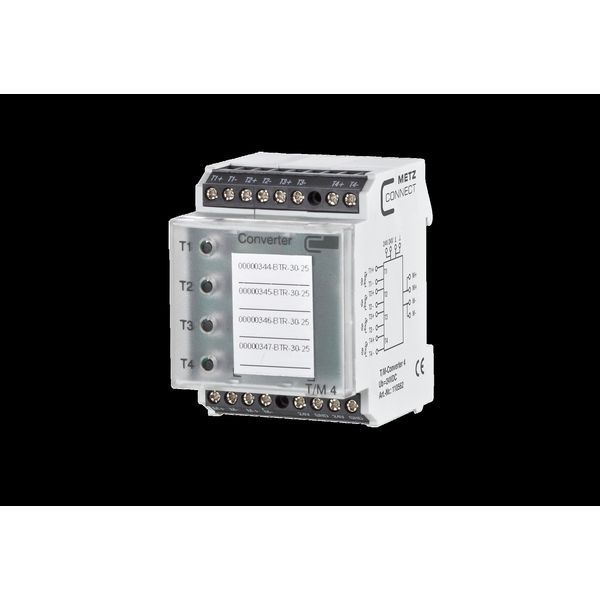

T/M 4
Order only
Price (excl. VAT):
123,39 €
EAN: 4250184122487
MPN: 110562
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | T/M 4 |
| Brand | METZ CONNECT |
| Categories |
Bus System Devices (KNX/Modbus)
|
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8517 6200 00 |
| Model | Direct/transformer |
| Connection type | Direct |
Packing details
| Packing level 1 | 4250184122487, 4250184122487 |
Other Technical data
| Bus system KNX | No |
| Bus system radio frequent | No |
| Bus system Powernet | No |
| Tariff switch | No |
| Reactive power | No |
| Approved according to PTB | No |
| Other bus systems | Other |
| Bus system LON | No |
| Bus system KNX radio | No |
| Radio frequent bidirectional | No |
| Min. depth of built-in installation box | 60 mm |
Description
Temperature converter to connect up to 4 different resistance temperature sensors in dual cable technology with a resolution in 0.1 K. The addressing of the 4 temperature sensors is done via 4 M-Bus addresses according to M-Bus standard DIN EN-1434-3. The temperature is directly converted in the device. The temperature converter occupies 4 clear M-Bus addresses specified by the manufacturer. It is possible to set for each channel 1 of 11 stored temperature sensor characteristics with the M-Bus configuration tool (www.metz-connect.com) or to transmit the resistance value directly. The cable length compensation is done with the push-button assigned to the respective temperature input. The factory setting is: -30 °C to 130 °C / PT1000.Connection with screw type terminal blocks
