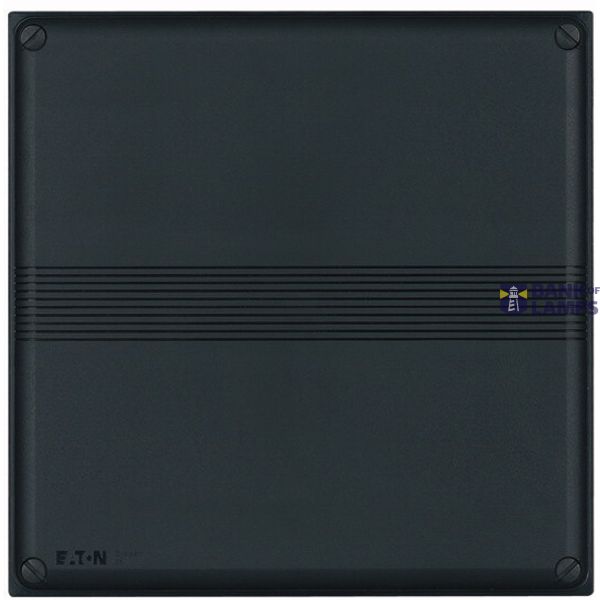

System 55 rail enclosure
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | System 55 rail enclosure |
| Brand | EATON |
| Country of origin* | RO |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8538 9099 00 |
| ETIM | EC002274 |
| Width | 225 mm |
| Height | 130 mm |
| Depth | 225 mm |
| Housing material | Plastic |
| Busbar distance | 35 mm |
| Rated current rail system | 125 A |
| Equipped with busbar | Yes |
Packing details
| Packing level 1 | 8711426848665 |
Other Technical data
| Mounting method | Surface mounted (plaster) |
| Extension possible | Yes |
| With transparent cover | No |
| Number of poles | 3 |
| Short-circuit breaking capacity (Icw) | 25 kA |
| Degree of protection (IP) | IP3X |
| Degree of protection (NEMA) | Other |
Description
Systeem 55; universal enclosure with busbars; 5-pole; 125A / 160A; H = 220 mm; W = 220 mm
