EATON

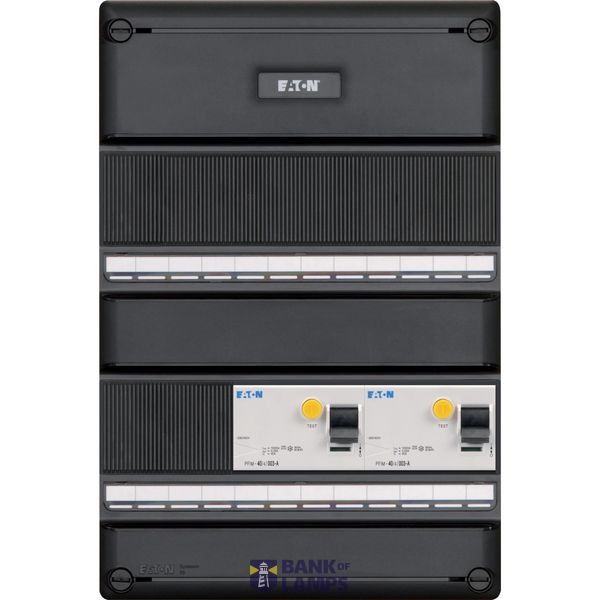

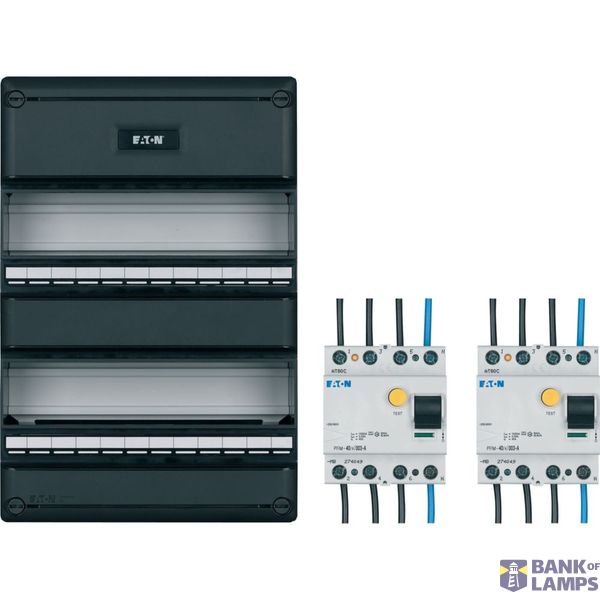

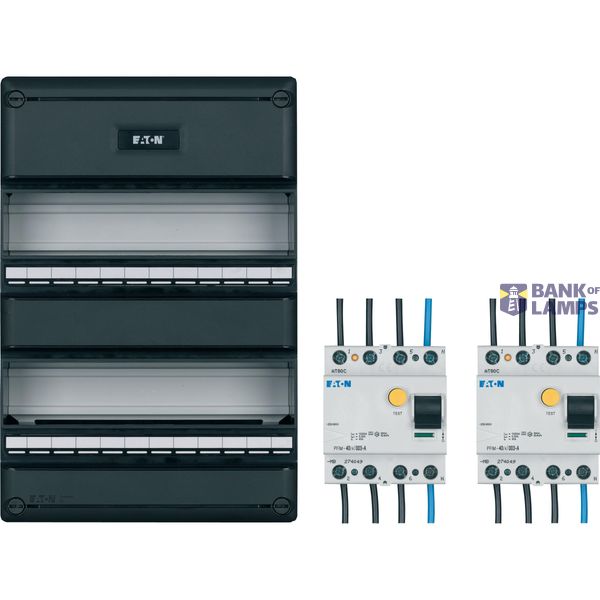

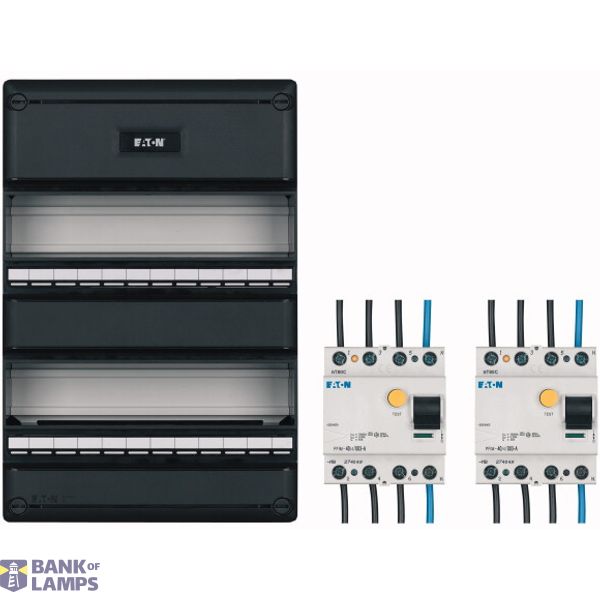

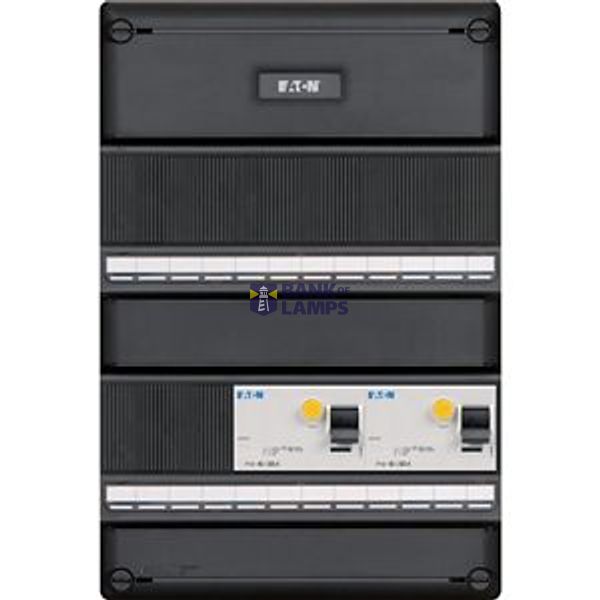

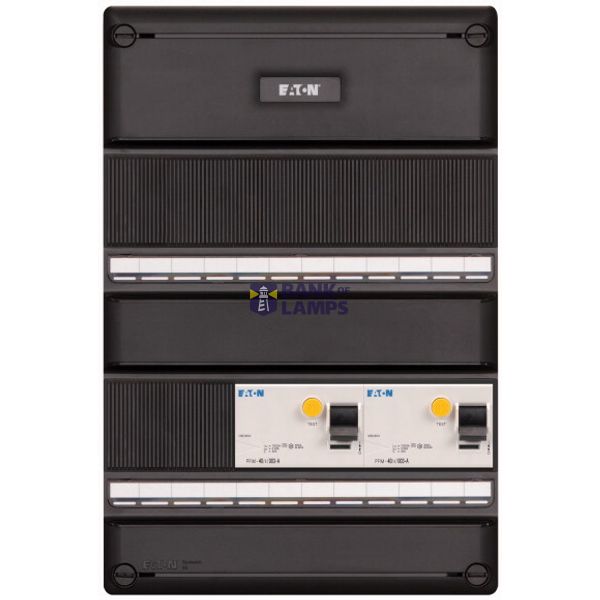

Systeem 55 consumer unit + 2x RCD 4-pole 40A, 30mA, A

Order only Not Available
Estimate delivery time to our warehouse: By request

Technical Information

Item condition New
Manufacture name Systeem 55 consumer unit + 2x RCD 4-pole 40A, 30mA, A
Brand EATON
Country of origin* RO
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code 8538 9099 00
ETIM EC000214
Mounting method Surface mounted (plaster)
Housing material Plastic
Degree of protection (IP) IP3X
Cover model With notch
Signal passing door No

Packing details

Packing level 1 9010238145498

Other Technical data

Colour Black
Width 220 mm
Height 330 mm
Depth 95 mm
RAL-number 9005
With mounting plate No
Built-in depth 95 mm
Number of rows 2
Built-in height 0 mm
Type of cover Cover
Built-in width 0 mm
EMC-version No
Extension possible Yes
Inner depth 0 mm
DIN-rail Yes
Width in number of modular spacings 12
Type of closure Other
Transparent cover/door No
With lock No
Earthing terminal block No
Neutral terminal block No

Description

Systeem 55 compact distribution board empty; 2x 12 space units; stable mounting frame with integrated insulating material DIN-rails; with innovative cover fasteners; mounting frame can be removed without tools; tested to NEN/EN 62208; stable cover/base section made of premium black ABS; with integrated support bracket for 16/19 mm conduits; degree of protection IP3X; with protective conductor terminal; without reserve section cover, incl. current circuit designation; H = 330 mm; W = 220 mm.
