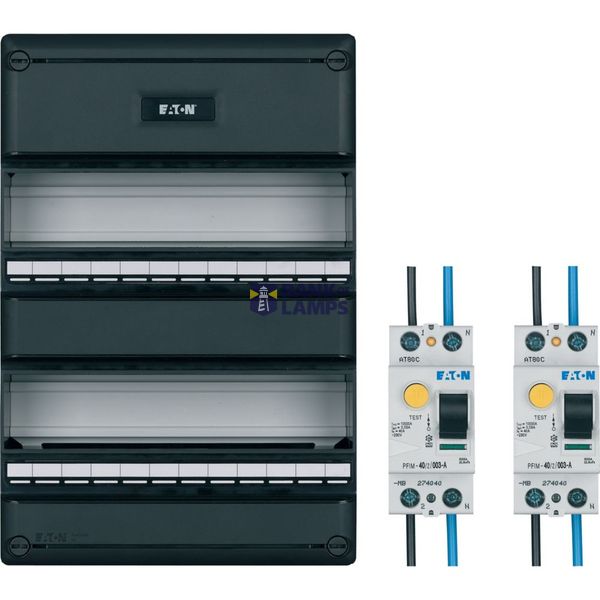

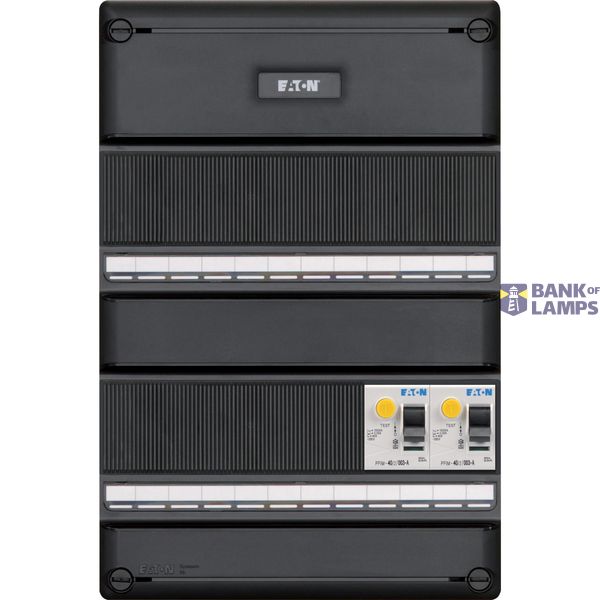

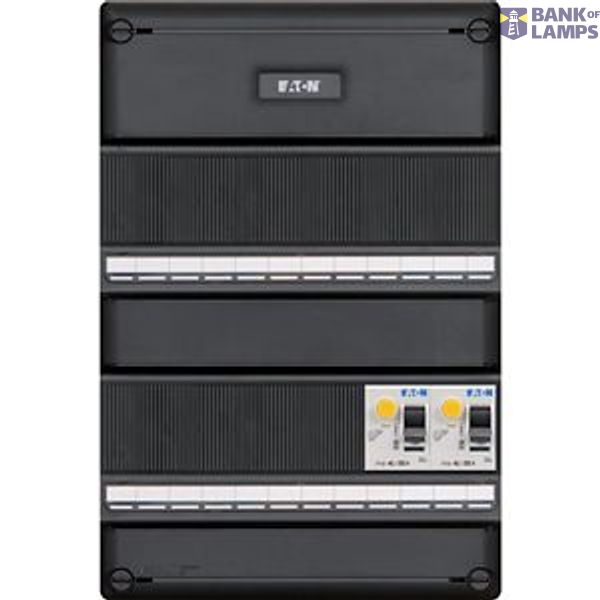

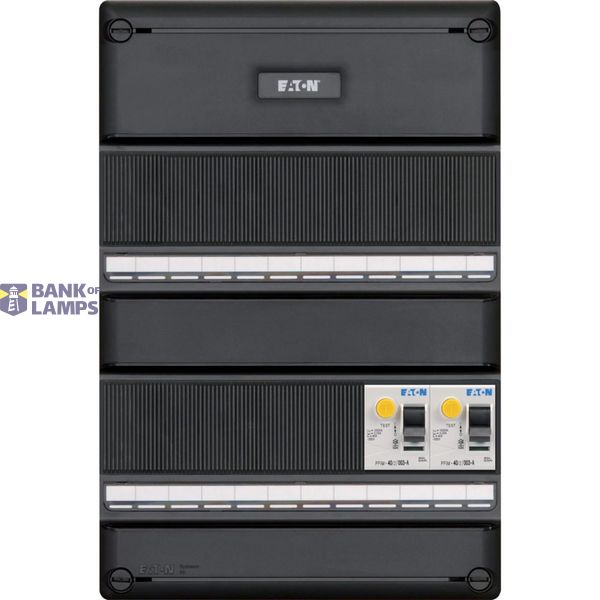

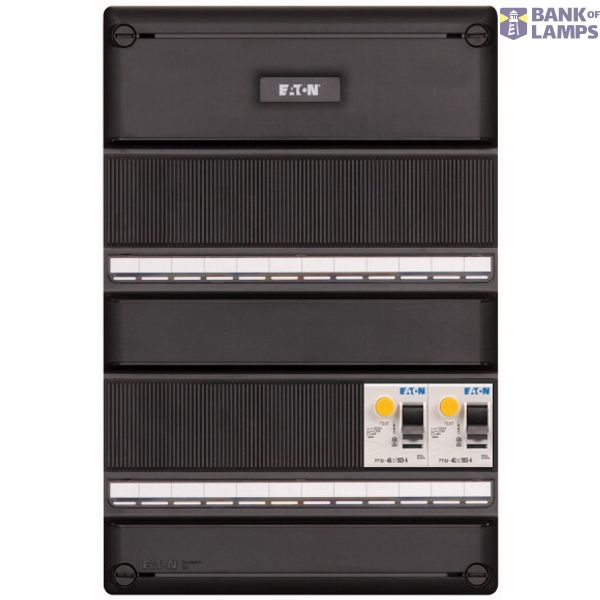

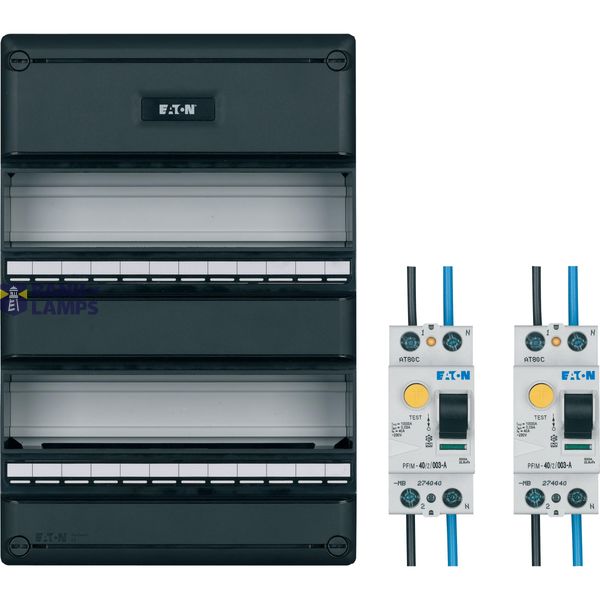

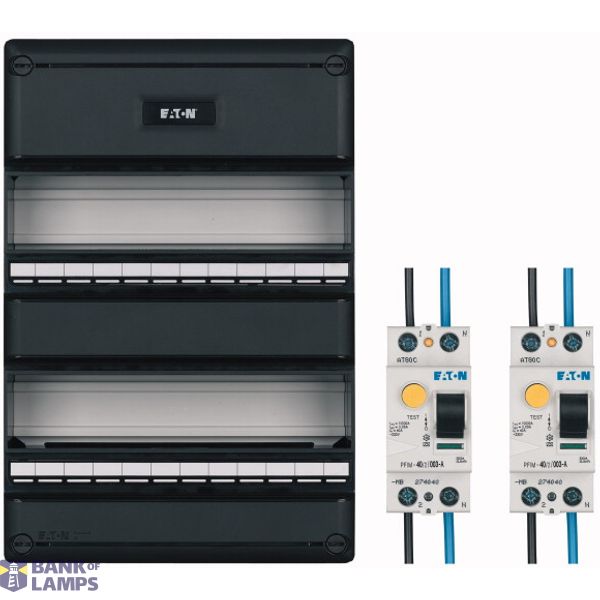

Systeem 55 consumer unit + 2x RCD 2-pole 40A, 30mA, A image 1

Systeem 55 consumer unit + 2x RCD 2-pole 40A, 30mA, A image 2

Systeem 55 consumer unit + 2x RCD 2-pole 40A, 30mA, A image 3

Systeem 55 consumer unit + 2x RCD 2-pole 40A, 30mA, A image 4

Systeem 55 consumer unit + 2x RCD 2-pole 40A, 30mA, A image 5

Systeem 55 consumer unit + 2x RCD 2-pole 40A, 30mA, A image 6

Systeem 55 consumer unit + 2x RCD 2-pole 40A, 30mA, A image 7

Systeem 55 consumer unit + 2x RCD 2-pole 40A, 30mA, A image 8

Systeem 55 consumer unit + 2x RCD 2-pole 40A, 30mA, A image 9

Systeem 55 consumer unit + 2x RCD 2-pole 40A, 30mA, A image 10

Systeem 55 consumer unit + 2x RCD 2-pole 40A, 30mA, A image 11

Systeem 55 consumer unit + 2x RCD 2-pole 40A, 30mA, A image 12

Systeem 55 consumer unit + 2x RCD 2-pole 40A, 30mA, A image 13

Systeem 55 consumer unit + 2x RCD 2-pole 40A, 30mA, A

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Systeem 55 consumer unit + 2x RCD 2-pole 40A, 30mA, A
Brand	EATON
Country of origin*	RO
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8538 9099 00
ETIM	EC000214
Mounting method	Surface mounted (plaster)
Housing material	Plastic
Degree of protection (IP)	IP3X
Cover model	With notch
Signal passing door	No

Packing details

Packing level 1

9010238145481

Other Technical data

Colour	Black
Width	220 mm
Height	330 mm
Depth	95 mm
RAL-number	9005
With mounting plate	No
Built-in depth	95 mm
Number of rows	2
Built-in height	0 mm
Type of cover	Cover
Built-in width	0 mm
EMC-version	No
Extension possible	Yes
Inner depth	0 mm
DIN-rail	Yes
Width in number of modular spacings	12
Type of closure	Other
Transparent cover/door	No
With lock	No
Earthing terminal block	No
Neutral terminal block	No

Description

Systeem 55 compact distribution board empty; 2x 12 space units; stable mounting frame with integrated insulating material DIN-rails; with innovative cover fasteners; mounting frame can be removed without tools; tested to NEN/EN 62208; stable cover/base section made of premium black ABS; with integrated support bracket for 16/19 mm conduits; degree of protection IP3X; with protective conductor terminal; without reserve section cover, incl. current circuit designation; H = 330 mm; W = 220 mm.
