Switching module for Niko Home Control for three different circuits
Order only
Price (excl. VAT):
202,22 €
EAN: 5413736291652
MPN: 550-00103
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Switching module for Niko Home Control for three different circuits |
| Brand | Niko |
| Categories |
Bus System Devices (KNX/Modbus)
|
| Country of origin* | TH |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 4900 00 |
| Bus system KNX | No |
| With bus connection | Yes |
| Bus system LON | No |
| Bus system KNX radio | No |
| Radio frequent bidirectional | No |
Packing details
| Packing level 1 | 5413736291652 |
Other Technical data
| Mounting method | DRA (DIN-rail adapter) |
| Rated current | 40 A |
| Output power | 9200 W |
| Rated operating voltage | 230 V |
| Bus system radio frequent | No |
| Bus system Powernet | No |
| Max. switching power | 3680 W |
| Max. number of switching contacts | 3 |
| Width in number of modular spacings | 2 |
| Max. switching current | 40 A |
| Other bus systems | NHC |
| Suitable for C-load | Yes |
| Different phases connectable | No |
| Local operation/hand operation | Yes |
| Degree of protection (IP) | IP20 |
| With LED indication | Yes |
| Modular expandability | Yes |
| Bus module detachable | No |
| Max. switching power LED | 690 W |
Downloads
Description

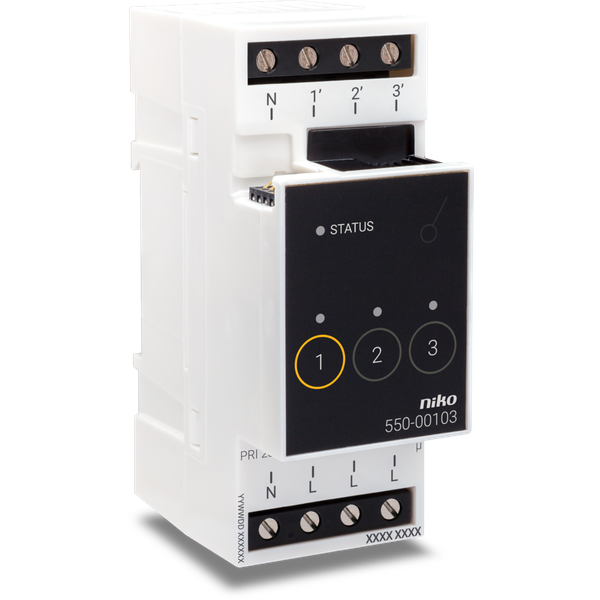

This switching module is used to switch three different circuits, for example, light points, socket outlets or control valves. By pushing the button, you can also control each contact manually. Using this module allows you to interconnect one zero conductor this keeps the wiring in the electricity cabinet tidy. The module is equipped with three feedback LEDs and one status LED and uses very little energy. This article is protected by at least one patent (application). For more info on patents, see www.niko.eu/innovation.
