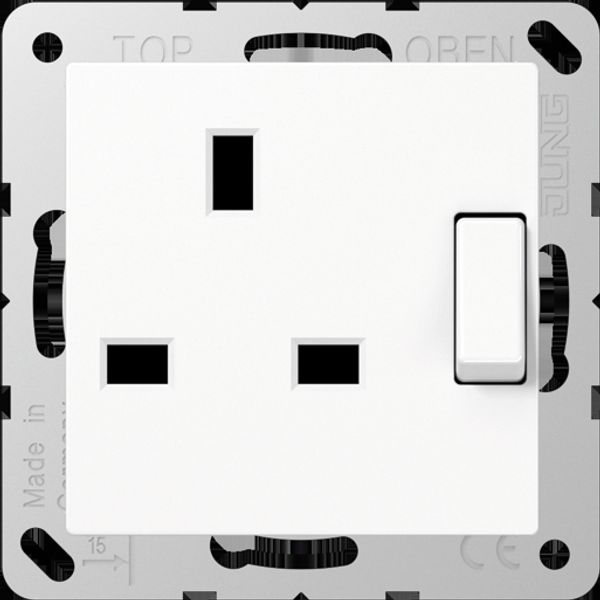

Switched socket A3171WW
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
29,11 €
EAN: 4011377053922
MPN: A3171WW
Box: 1
Estimate delivery time at our warehouse (approx.):
2-4 weeks
Technical Information
| Item condition | New |
| Manufacture name | Switched socket A3171WW |
| Brand | Jung |
| Categories |
Sockets
|
| Country of origin | DE |
| Harmonized System Code | 8536 6990 00 |
| Nominal current | 13 A |
| Nominal voltage | 250 V |
| Mounting method | Flush mounted (plaster) |
| Colour | White |
| Model | British Standard |
| Halogen free | Yes |
| Number of units | 1 |
| Lockable | No |
| With hinged lid | No |
| Connection type | Screwed terminal |
| Surface protection | Other |
| With signal lamp | No |
| Number of phases | 1 |
| With enhanced contact protection | Yes |
| With on/off switch | Yes |
| Protective contact | Yes |
| Label space/information surface | No |
| Eject-mechanism | No |
| Material quality | Duroplast |
| Rotated central insert | No |
| Over voltage protection | No |
| Fault current protection | No |
| Special power supply | No special power supply |
| Insulated mounting | No |
| Material | Plastic |
| Rated fault current | 0 mA |
| Type of fastening | Mounting with screw |
| RAL-number (similar) | 9016 |
| Transparent | No |
| Surface finishing | Glossy |
| With miniature fuse | No |
| With loop through function | No |
| Suitable for degree of protection (IP) | IP20 |
| Device width | 55 mm |
| Device height | 55 mm |
| Device depth | 0 mm |
| Number of socket outlets switchable | 1 |
| With function lighting | No |
| With orientation lighting | No |
| With built-in USB power supply | No |
| Number of modules (module system) | 0 |
| Number of active pins (round) | 2 |
| Number of active pins (flat) | 0 |
| Protective earth pin round | Yes |
| Min. depth of built-in installation box | 0 mm |
| Anti-bacterial treatment | No |
Packing details
| Packing level 1 | 4011377053922 |
| Packing level 2 | 4011377053922 |
Downloads
Description
Switched socket A3171WW used for connecting electrical devices to mains power while allowing control via an integrated on/off switch.Flush-mounted design suitable for plaster installations. White, glossy finish.Plastic construction, duroplast material quality ensures durability.Device dimensions:width 55 mm x height 55 mm x depth 0 mm.RAL color similar to 9016.Mounting with screws only;insulated mounting not supported. Nominal current rated at 13 A, nominal voltage at 250 V.Single-phase operation with protective round earth pin included in its British Standard model structure.Enhanced contact protection confirmed;protective contact present.Screw terminal connection type established. Not halogen-free but lockable functions absent along with any signal lamp, eject mechanism, or impact strength ratings provided by the manufacturer details
