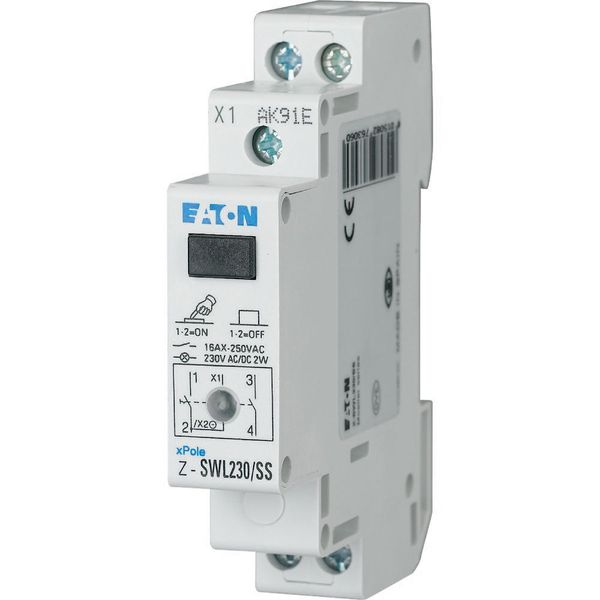

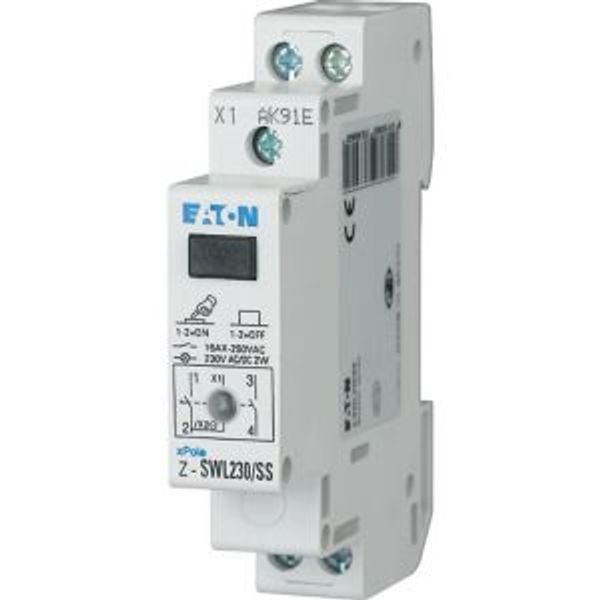

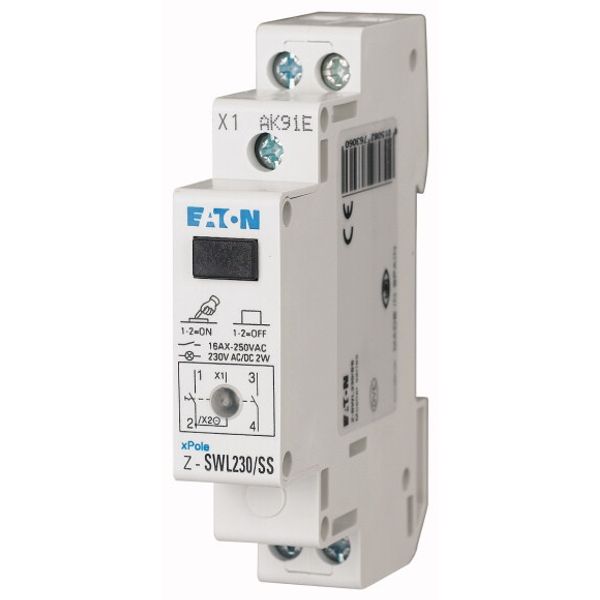

Z-SWL230/SS Switch with LED, 230AC/DC, 2N/O, 16A, orange, 1HP
In vendor's stock
Minimal order quantity: 2
Price (excl. VAT):
17,34 €
Subtotal: 34,68 €
MOQ: 2
EAN: 4015082763060
MPN: 276306
Package: 1
Box: 2
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Z-SWL230/SS Switch with LED, 230AC/DC, 2N/O, 16A, orange, 1HP |
| Brand | EATON |
| Categories |
Main Switches
|
| Country of origin | RO |
| Harmonized System Code | 8536 4900 00 |
| Voltage type | AC |
| Switching function | Control switch |
| Rated current | 16 A |
| Rated voltage | 250 V |
| Number of poles | 2 |
| Degree of protection (IP) | IP40 |
Packing details
| Packing level 1 | 4015082763060 |
| Packing level 2 | 9007912419853 |
| Packing level 3 | 9007912419860 |
Other Technical data
| With signal lamp | Yes |
| Built-in depth | 80 mm |
| Max. lamp power | 2 W |
| Lamp type | LED |
| Short-circuit breaking capacity (Icw) | 0.02 kA |
| Rated switching capacity | 0.02 kA |
| Width in number of modular spacings | 1 |
| Imprint/indication | Other |
| Colour calotte | Other |
| Lamp socket | Other |
| Min. rated voltage | 230 V |
| Number of contacts as normally closed contact | 0 |
| Number of contacts as normally open contact | 2 |
| Number of contacts as change-over contact | 0 |
| Forced segregation according to DIN VDE 0113 | No |
Description
Switch with LED, function: 2 N/O, rated operational current 16A, rated operating voltage of the switch 250V AC, rated operating voltage of LED 230V AC/DC, color of pushbutton black, color of the LED orange, standard front dimension 45 mm, mounting width 1 SU (17.5mm), top-hat rail mounting, terminal cross-section 1-10 mm², type conform to IEC/EN 60669, VDE 0632
