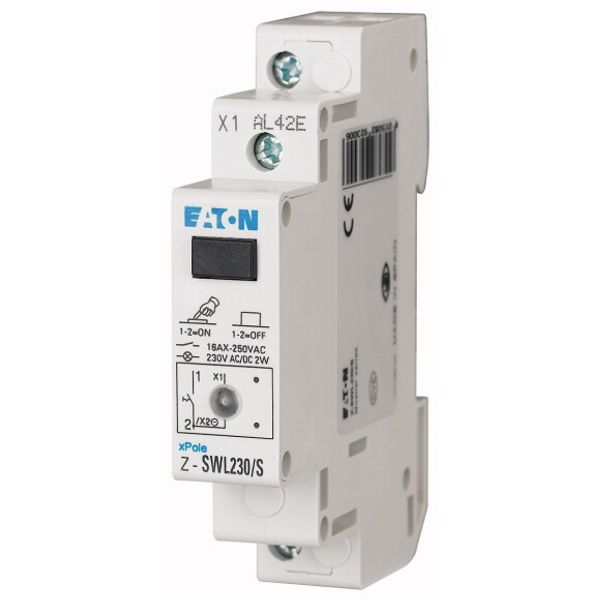

Z-SWL230/S Switch with LED, 230AC/DC, 1N/O, 16A, orange, 1HP
In stock
In vendor's stock
Minimal order quantity: 2
Price (excl. VAT):
17,08 €
Subtotal: 34,16 €
MOQ: 2
EAN: 4015082923006
MPN: 292300
Package: 1
Box: 2
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Z-SWL230/S Switch with LED, 230AC/DC, 1N/O, 16A, orange, 1HP |
| Brand | EATON |
| Categories |
Main Switches
|
| Country of origin* | RO |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 2010 00 |
| Voltage type | AC |
| Switching function | Off switch |
| Rated current | 16 A |
| Rated voltage | 250 V |
| Number of poles | 1 |
| Degree of protection (IP) | IP40 |
Packing details
| Packing level 1 | 4015082923006 |
| Packing level 2 | 9007912614180 |
| Packing level 3 | 9007912614197, 9007912614197 |
Other Technical data
| With signal lamp | Yes |
| Built-in depth | 80 mm |
| Max. lamp power | 2 W |
| Lamp type | LED |
| Short-circuit breaking capacity (Icw) | 0.02 kA |
| Rated switching capacity | 0.02 kA |
| Width in number of modular spacings | 1 |
| Imprint/indication | Other |
| Colour calotte | Other |
| Lamp socket | Other |
| Min. rated voltage | 230 V |
| Number of contacts as normally closed contact | 0 |
| Number of contacts as normally open contact | 1 |
| Number of contacts as change-over contact | 0 |
| Forced segregation according to DIN VDE 0113 | No |
Description
Switch with LED, function: 1 N/O, rated operational current 16A, rated operating voltage of the switch 250V AC, rated operating voltage of LED 230V AC/DC, color of pushbutton black, color of the LED orange, standard front dimension 45 mm, mounting width 1 SU (17.5mm), top-hat rail mounting, terminal cross-section 1-10 mm², type conform to IEC/EN 60669, VDE 0632
Alternative EAN
Order only
Siemens
Control switch 20 A 1 NO 1 lamp 230 V
13,18 €
per pcs
EAN: 4001869209920
MPN: 5TE8101
Box: 1
