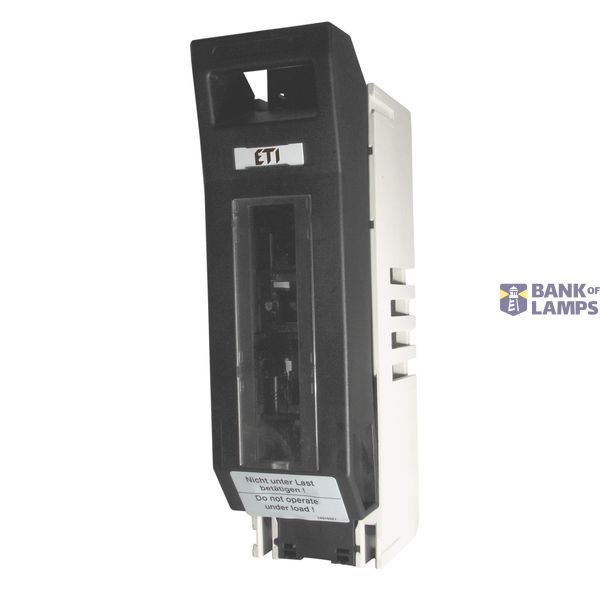

Switch disconnector fuse, TL1-1/9/1000V/PV

Name: Switch disconnector fuse, TL1-1/9/1000V/PV
Brand: ETI
Availability: PreOrder

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Switch disconnector fuse, TL1-1/9/1000V/PV
Brand	ETI
ETIM	EC001040
Rated permanent current Iu	160 A
Number of poles	1
Degree of protection (IP), front side	IP20
Suitable for fuses	NH1
Version as main switch	Yes
Version as safety switch	No

Packing details

Packing level 1

4029155987192, 4029155987192

Other Technical data

Motor drive integrated	No
Type of electrical connection of main circuit	Screw connection
Version as emergency stop installation	No
Type of control element	Cover grip
Suitable for floor mounting	No
Suitable for front mounting	No
Suitable for busbar mounting	No
With error protection	No
Motor drive optional	No

Description

Switch disconnector fuse, TL1-1/9/1000V/PV, Connection M10, Product group LV-fuse disconnector, Rated current (A) 160, Rated DC voltage (V) 1000, Size 1, Type TL1
