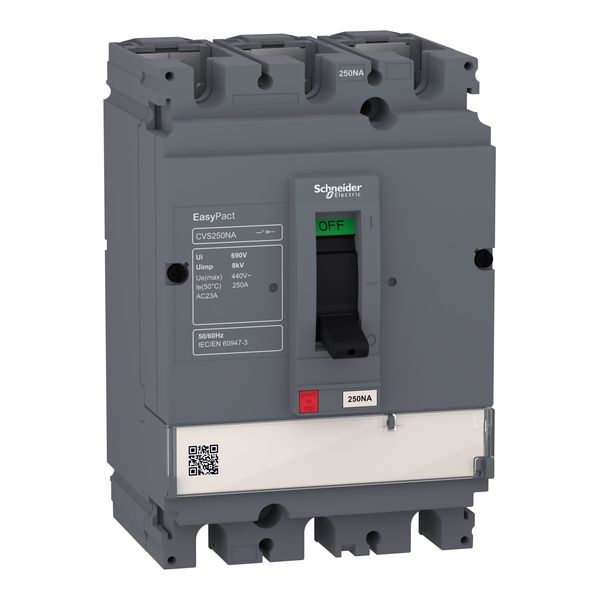

switch disconnector EasyPact CVS250NA, 3 poles, 250 A, AC22A, AC23A
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
199,63 €
EAN: 3606480239236
MPN: LV525425
Package: 1
Box: 12
Pallet: 24
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | switch disconnector EasyPact CVS250NA, 3 poles, 250 A, AC22A, AC23A |
| Brand | Schneider Electric |
| Categories |
Switch Disconnectors
|
| Harmonized System Code | 8536 5080 00 |
| Rated permanent current Iu | 250 A |
| Number of poles | 3 |
| Rated operating voltage | 220-440 V |
| Degree of protection (IP), front side | IP40 |
| Version as main switch | Yes |
| Version as safety switch | No |
| Version as maintenance-/service switch | No |
| Rated short-time withstand current lcw | 3.5 kA |
Packing details
| Packing level 1 | 3606480239236 |
| Packing level 2 | 3606480239234 |
| Packing level 3 | 3606480239236 |
Other Technical data
| Rated operation power at AC-3, 400 V | 0 kW |
| Number of auxiliary contacts as normally open contact | 0 |
| Number of auxiliary contacts as normally closed contact | 0 |
| Conditioned rated short-circuit current Iq | 0 kA |
| Number of auxiliary contacts as change-over contact | 4 |
| Number of switches | 1 |
| Interlockable | Yes |
| Motor drive integrated | No |
| Type of electrical connection of main circuit | Screw connection |
| Version as emergency stop installation | No |
| Type of control element | Toggle |
| Rated operation power at AC-23, 400 V | 0 kW |
| Colour control element | Black |
| Suitable for floor mounting | No |
| Suitable for front mounting 4-hole | Yes |
| Suitable for front mounting centre | Yes |
| Suitable for distribution board installation | Yes |
| Suitable for intermediate mounting | Yes |
| Max. rated operation voltage Ue AC | 440 V |
| Motor drive optional | No |
| Voltage release optional | No |
| Device construction | Built-in device fixed built-in technique |
| Rated permanent current at AC-21, 400 V | 0 A |
| Switching power at 400 V | 0 kW |
| Version as reversing switch | No |
| Rated permanent current at AC-23, 400 V | 250 A |
Downloads
ECOP (Environmental Code of Practice)
Declaration EPD (Environmental Product Declaration)
Instructions for use
Technical manual
Others
Mounting instruction
Description
This device is a 250A switch disconnector from EasyPact CVS250. This operational current(Ie) is both 250A, when is used for utilisation category AC22 or AC23. The rated short-time withstand current(Icw) is 3500A(1s). The version of device is 3poles frame without tripping protection. It is conformed to standard EN/IEC60947-3 for switch disconnector products. This device is certified for operation in pollution degree III environment as defined IEC60947-1& IEC60664-1, and respected for RoHs requirement as european environment directive EC/2002/95. It can be mounted by blackplate or Din rail,also through the door of class II switchboard without downgrading switchboard insulation. The front of toggle offers IP40 protection, but when it is equiped extended rotary handle, additional IP54 protection degree for extended rotary handle. This series have slots for control auxiliaries(MN/MX),which is indicated contact status. The fixed dimension is 105mm(width).161mm(height),86mm(Depth),
