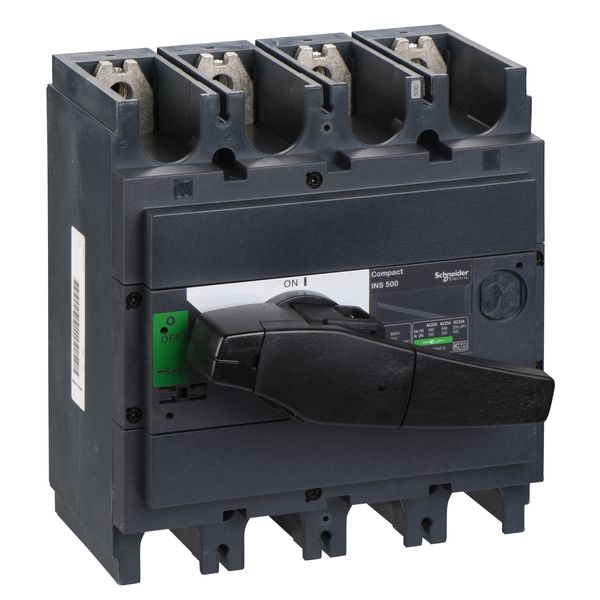

Switch disconnector Compact INS500 4P 500A black rotary handle
Order only
Price (excl. VAT):
474,49 €
EAN: 3303430311133
MPN: 31113
Package: 1
Box: 4
Pallet: 16
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | Switch disconnector Compact INS500 4P 500A black rotary handle |
| Brand | Schneider Electric |
| Categories |
Switch Disconnectors
|
| Country of origin* | PL |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Rated permanent current Iu | 500 A |
| Number of poles | 4 |
| Rated operating voltage | 0-690 V |
| Degree of protection (IP), front side | IP40 |
| Version as main switch | Yes |
| Version as safety switch | No |
| Version as maintenance-/service switch | Yes |
| Rated short-time withstand current lcw | 20 kA |
Packing details
| Packing level 1 | 3303430311133 |
| Packing level 2 | 3303430311131 |
| Packing level 3 | 3303430311133 |
Other Technical data
| Rated operation power at AC-3, 400 V | 0 kW |
| Number of auxiliary contacts as normally open contact | 0 |
| Number of auxiliary contacts as normally closed contact | 0 |
| Conditioned rated short-circuit current Iq | 0 kA |
| Number of auxiliary contacts as change-over contact | 4 |
| Number of switches | 1 |
| Interlockable | Yes |
| Motor drive integrated | No |
| Type of electrical connection of main circuit | Screw connection |
| Version as emergency stop installation | No |
| Type of control element | Long turning handle |
| Rated operation power at AC-23, 400 V | 250 kW |
| Colour control element | Black |
| Suitable for floor mounting | Yes |
| Suitable for front mounting 4-hole | Yes |
| Suitable for front mounting centre | Yes |
| Suitable for distribution board installation | Yes |
| Suitable for intermediate mounting | No |
| Max. rated operation voltage Ue AC | 690 V |
| Motor drive optional | No |
| Voltage release optional | No |
| Device construction | Built-in device fixed built-in technique |
| Rated permanent current at AC-21, 400 V | 0 A |
| Switching power at 400 V | 0 kW |
| Version as reversing switch | No |
| Rated permanent current at AC-23, 400 V | 500 A |
Downloads
ECOP (Environmental Code of Practice)
Declaration EPD (Environmental Product Declaration)
Technical manual
Others
Mounting instruction
Description
This Compact INS500 is a 4 poles non-automatic switch-disconnector with black rotary handle. It is suitable for isolation with positive contact indication, as defined by IEC 60947-1 and IEC60947-3 standards. The operational current is 500A at 415VAC in categories AC22A and AC23A. The rated voltage is 690VAC 50/60Hz or 250VDC. The black rotary handle is designed to offer easy operation and high performance in interruption of currents. Compact INS500 is a class II insulation level front-face device as per IEC 60664 standard.
