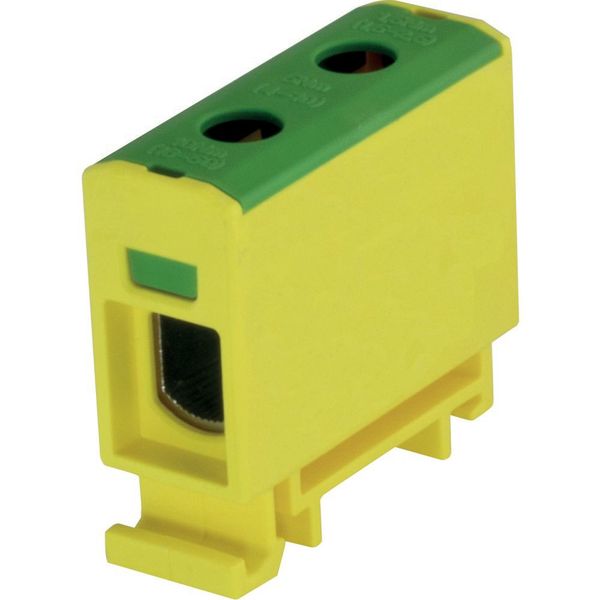

BPZ-KC-1/50PE-ALU Terminal block 1x50mm², 160A Cu / 145A Al

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

2,26 €

This price is valid until 24.12.25

EAN: 9010238092129

MPN: 195338

Package: 1

Box: 10

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	BPZ-KC-1/50PE-ALU Terminal block 1x50mm², 160A Cu / 145A Al
Brand	EATON
Categories	Preassembled Distribution Units
Country of origin	FI
Harmonized System Code	8536 9010 00
Number of poles	1
Number of clamp positions per pole	1

Packing details

Packing level 1	9010238092129
Packing level 2	9010238096028
Packing level 3	9010238096363

Other Technical data

Width	18 mm
Height	43 mm
Depth	49 mm
Conductor cross section flexible (fine-strand) with cable end sleeve	35 mm²
Conductor cross section solid (solid, stranded)	50 mm²
Max. rated current	160 A
With N-rail	No
With PE-rail	No

Description

1-pole terminal block, BPZ-KC-...-ALU; aluminum design; rated current/terminal capacity in accordance with specifications; assembly primarily on DIN rails or, where applicable, mounting plate, protection type IP20, max. operating voltage 1000V AC/DC, available in the colors gray/blue/yellow-green. Equipment supplied: 1 1 pole terminal block
