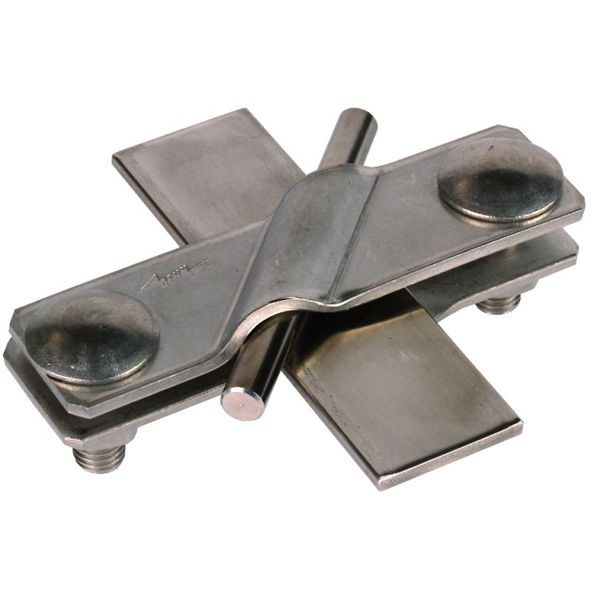

SV clamp StSt (V4A) f. Fl 40/40mm Rd 7-10/7-10mm - Rd 7-10/Fl 40mm

Order only

Price (excl. VAT):

8,46 €

This price is valid until 24.12.25

EAN: 4013364081338

MPN: 308329

Package: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	SV clamp StSt (V4A) f. Fl 40/40mm Rd 7-10/7-10mm - Rd 7-10/Fl 40mm
Brand	Dehn
Categories	Earthing Products
Country of origin*	DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8538 9099 00
Surface protection	Untreated
Type of fastening screws	Flat round screw
Material	Stainless steel V4A
Lightning current load-bearing capacity (10/350 µs)	100 kA
Diameter round conductor 1	7-10 mm
Width flat conductor 1	30-40 mm

Packing details

Packing level 1

4013364081338, 4013364081338

Other Technical data

Type of connector	Cross connector
Diameter round conductor 2	7-10 mm
Width flat conductor 2	30-40 mm

Downloads

Product data sheet

Description

Diagonal connecting clamps (in German: Schräg-Verbinder-Klemmen) according to EN 62561-1 for cross and T connections of round and flat conductors (width up to 40 mm). M10 screws with anti-rotation protection.
