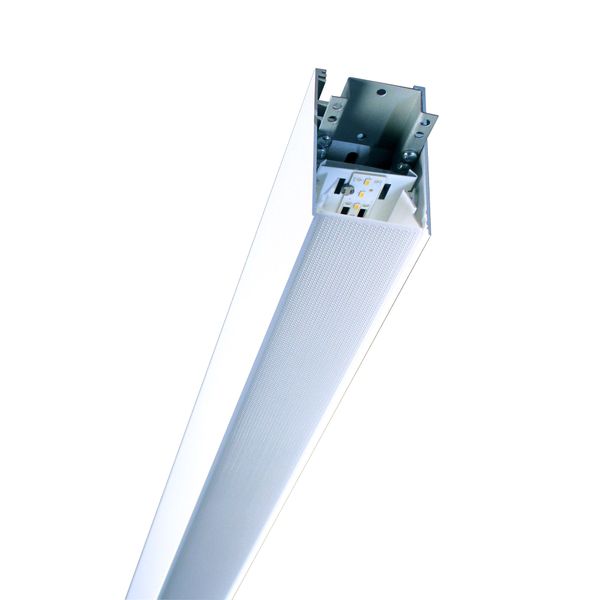

Suspension luminaire ANS12MU LED 22W/840 M
Order only
Price (excl. VAT):
220,75 €
EAN: 6438389008531
MPN: ANS12MU
Package: 1
Estimate delivery time at our warehouse (approx.):
2-4 weeks
Technical Information
| Item condition | New |
| Manufacture name | Suspension luminaire ANS12MU LED 22W/840 M |
| Brand | Ensto |
| Categories |
Pendant lights
|
| Width | 70 mm |
| Colour rendering index CRI | 80-89 |
| Length | 1125 mm |
| Height/depth | 115 mm |
| Lamp type | LED exchangeable |
| Impact strength | IK00 |
| Degree of protection (IP) | IP20 |
| Max. system power | 22 W |
| Rated luminous flux according to IEC 62722-2-1 | 2500 lm |
Packing details
| Packing level 1 | 6438389008531, 6438389008531 |
Other Technical data
| Protection class | I |
| Lamp holder | None |
| Conductor cross section | 2.5 mm² |
| Connection type | Push-in clamp |
| Colour housing | White |
| Voltage type | AC |
| Type of control gear | LED operating device current-controlled |
| Number of poles | 3 |
| Housing material | Aluminium |
| Direct-/indirect proportion separately controllable | No |
| Suitable for light line configuration | Yes |
| Suitable for emergency lighting | No |
| Light outlet | Direct/indirect |
| Light sharing | Symmetric |
| Material cover | Plastic, structured |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| With control gear | Yes |
| With suspension | No |
| Suitable for workplace according to EN 12464-1 | Yes |
| Colour of light | White |
| Type of wiring | Through wiring included |
| Rated life time L70/B50 at 25 °C | 100000 h |
| Rated life time L80/B10 at 25 °C | 70000 h |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming GPRS | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | Yes |
| Light distributor | Diffuser lens/optic/panel |
| Dimming DSI | No |
| Energy efficiency class of the built-in lamp | A++, A+, A (LED) |
Description
Anna System is greater than the sum of its parts. High-end design, control and optical features enable creating high quality lighting in demanding public spaces.
