Suspended luminaires Opendo H Lens White ETBLE 52W 6100lm Wide reduced glare UGR19 (W19) IK03 3 SDCM 8417163

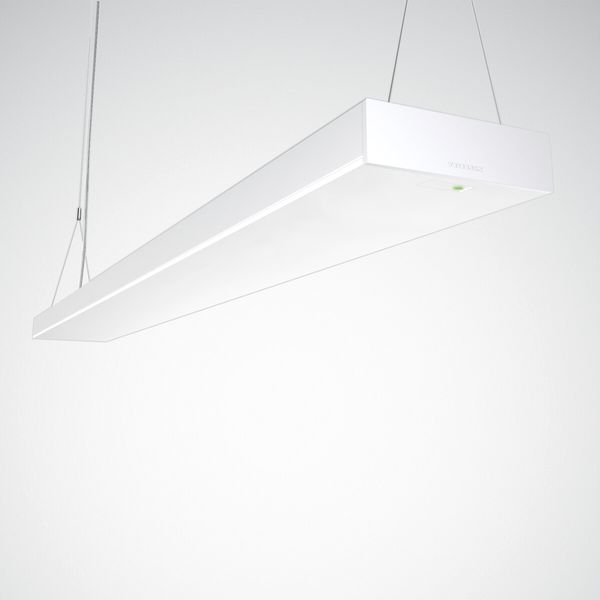

Rectangular suspended LED luminaire, direct-indirect distribution, with full-surface, borderless PMMA cover. With CASAMBI module for integration into a wirelessly controllable mesh network of up to 250 divices. The system is commissioned using the Casambi app (iOS and Android). Version with integrated presence and daylight sensor. Suitable for use in HACCP, IFS and/or BRC Global Standard Food certified companies. Verwendung als Lichtbandleuchte auf Anfrage möglich. With an internal microprismatic cover and an opal PMMA cover smooth on room side. With symmetric limited wide light distribution. Glare evaluation according to UGR rating (EN 12464-1) < 19. Luminaire luminous flux and light color fixed. Luminaire luminous flux 6100 lm, connected load 52 W, maximum luminous efficiency of luminaire 117 lm/W. Light colour warm white, correlated colour temperature (CCT) 3000 K, general colour rendering index (CRI) Ra > 80. Colour locus tolerance (initial MacAdam) ≤ 3 SDCM. Mean rated service life L80(tq 25 °C) = 50,000 h. The light source is replaceable according to the ecodesign requirements (VO (EU) 2019/2020). Luminaire body sheet steel. Surface coated white (RAL 9016). Dimensions (L x W): 1408 mm x 160 mm, luminaire height 47 mm. Safety class (EN 61140): I, protection rating (DIN EN 60529): IP20, impact resistance level in accordance with IEC 62262: IK03, testing temperature of wire glow test in accordance with IEC 60695-2-11: 650 °C. Weight: 4,9 kg. With Bluetooth Low Energy operating device (BLE). The control gear unit is replaceable in accordance with the ecodesign requirements (VO (EU) 2019/2020). The luminaire complies with the fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol. Luminaire available for 10 years, spare parts (LED module, control gear unit, optical system) for 15 years from date of invoice, subject to reasonable modifications in the interests of progress.
