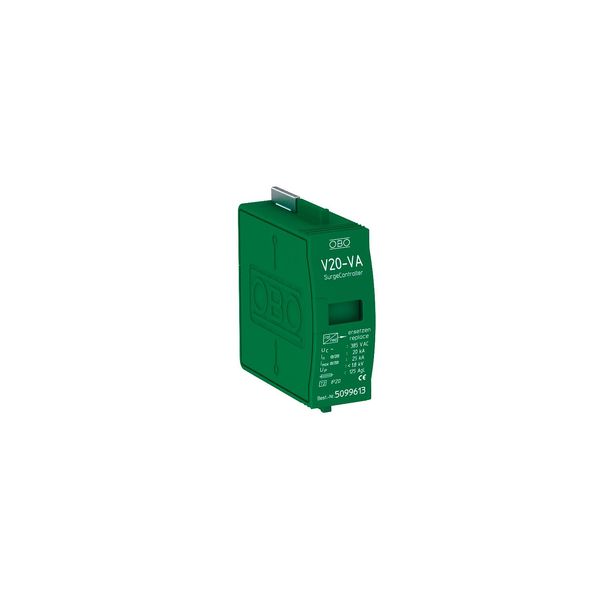

V20-VA 0 SurgeController V20 leakage current free, upper 385V
Order only
Price (excl. VAT):
17,74 €
per pcs
EAN: 4012195807612
MPN: 5099613
Package: 1
Box: 32
Pallet: 2048
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | V20-VA 0 SurgeController V20 leakage current free, upper 385V |
| Brand | OBO Bettermann |
| Categories |
Surge Protection Devices (SPD)
|
| Country of origin* | HU |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 3030 00 |
| Voltage protection level | 1.8 kV |
| Nominal discharge surge current (8/20) | 20 kA |
| Degree of protection (IP) | IP20 |
| System configuration DC | No |
| System configuration IT | No |
| System configuration TN | No |
| System configuration TN-C-S | No |
Packing details
| Packing level 1 | 4012195807629 |
| Packing level 2 | 4012195807636 |
| Packing level 3 | 4012197074661 |
Other Technical data
| Mounting method | On basic element |
| With remote signalling contact | No |
| Construction size | 1 modular spacing |
| Max. continuous voltage AC | 385 V |
| Category type 2 | No |
| Signalling at the device | Optic |
| Integrated backup fuse | No |
| System configuration TN-C | No |
| System configuration TN-S | No |
| System configuration TT | No |
| System configuration other | No |
| Max. discharge surge current (8/20) | 25 kA |
| Integrated short-circuit protection | No |
| Leakage-current free | No |
Description
Atsevišķa augšējā daļa (iespraužama).
• Piemērots lietošanai zonā pirms elektroenerģijas skaitītāja (pilnīgi bez noplūdes strāvas)
• Iespraužama augšējā daļa, lai to no apakšējās daļas varētu atdalīt, neizmantojot instrumentus
