V10-C 1-280 SurgeController V10 single pole version 280V
Order only
Price (excl. VAT):
30,82 €
per pcs
EAN: 4012195406778
MPN: 5093415
Package: 1
Box: 32
Pallet: 2048
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | V10-C 1-280 SurgeController V10 single pole version 280V |
| Brand | OBO Bettermann |
| Categories |
Surge Protection Devices (SPD)
|
| Country of origin* | HU |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 3030 00 |
| Voltage protection level | 1.1 kV |
| Nominal discharge surge current (8/20) | 10 kA |
| Nominal voltage AC | 230 V |
| Degree of protection (IP) | IP20 |
| System configuration DC | No |
| System configuration IT | No |
| System configuration TN | Yes |
| System configuration TN-C-S | Yes |
Packing details
| Packing level 1 | 4012195416562 |
| Packing level 2 | 4012195416579 |
| Packing level 3 | 4012197070311 |
Other Technical data
| Mounting method | DIN rail (top hat rail) 35 mm |
| With remote signalling contact | No |

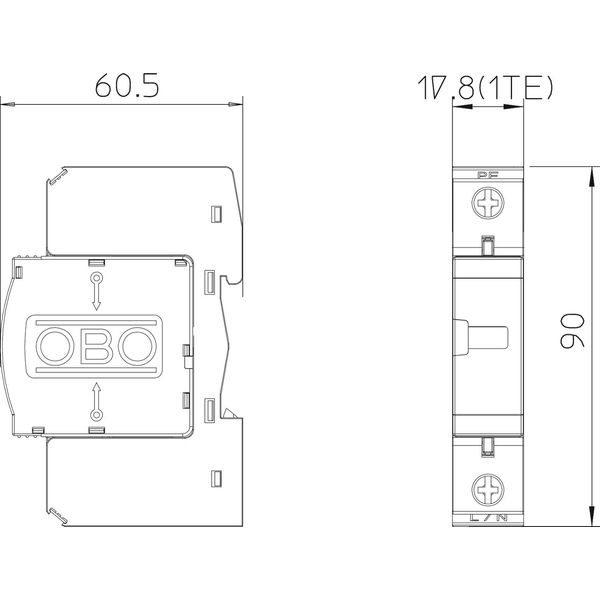

| Construction size | 1 modular spacing |
| Max. continuous voltage AC | 280 V |
| Category type 2 | No |
| Signalling at the device | Optic |
| Integrated backup fuse | No |
| Max. conductor cross section solid (solid, stranded) | 35 mm² |
| System configuration TN-C | Yes |
| System configuration TN-S | Yes |
| System configuration TT | Yes |
| System configuration other | No |
| Max. discharge surge current (8/20) | 20 kA |
| Integrated short-circuit protection | No |
| Leakage-current free | No |
Downloads
Description
Pārsprieguma novadītājs, tips 2+3
• Pārsprieguma aizsardzības potenciālu izlīdzināšanai sekundārajās sadalēs atb. VDE 0100-443 (IEC 60364-4-44)
• Novadīšanas spēja līdz 20 kA (8/20) katram polam
• Novadītājs, iespraužams, ar dinamisku atdalošo iekārtu un optisku funkciju indikatoru
• Jaudīga varistoru tehnoloģija
• Apakšējā daļa ar Multi pieslēguma spailēm
Pielietojuma piemērs: potenciālu izlīdzināšana un ierīču aizsardzība sekundārajā sadalē un ierīču aizsardzībā.
