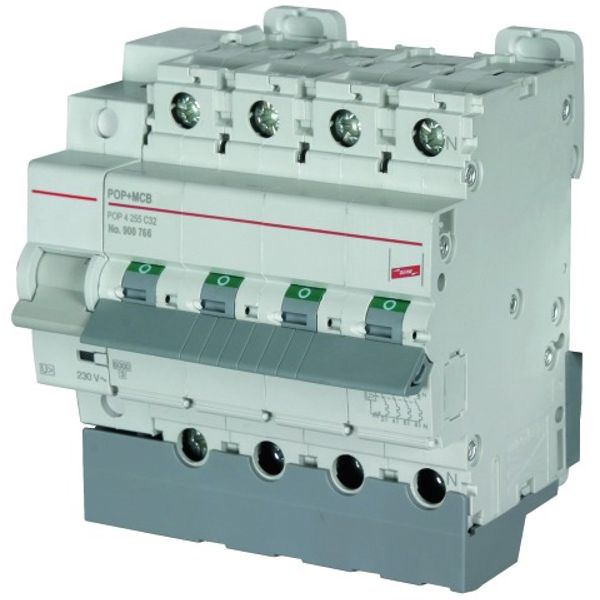

Surge protective devices for circuit breakers 4-pole C32 A
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
414,49 €
EAN: 4013364156173
MPN: 900766
Package: 1
Estimate delivery time at our warehouse (approx.):
2 weeks
Technical Information
| Item condition | New |
| Manufacture name | Surge protective devices for circuit breakers 4-pole C32 A |
| Brand | Dehn |
| Categories |
Circuit breakers 32A
Breakers |
| Country of origin | FR |
| Harmonized System Code | 8536 3030 00 |
| Rated current | 32 A |
| Rated voltage | 400 V |
| Release characteristic | C |
| Width in number of modular spacings | 7 |
| Number of poles (total) | 4 |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V | 6 kA |
Packing details
| Packing level 1 | 4013364156173, 4013364156173 |
Other Technical data
| Voltage type | AC |
| Frequency | 50 Hz |
| Degree of protection (IP) | IP20 |
| Number of protected poles | 4 |
| Concurrently switching neutral conductor | Yes |
Downloads
Description
Pre-wired complete unit, additional wiring of the single devices not necessary. Meets the requirements of EN 50550 "Power frequency overvoltage protective device". High reliability due to "Thermo Dynamic Control" SPD monitoring device. For protecting low-voltage consumer's installations against transient and temporary overvoltages (SPD+POP). For installation in conformity with the lightning protection zone concept at the boundaries from 0B-1 and higher.
