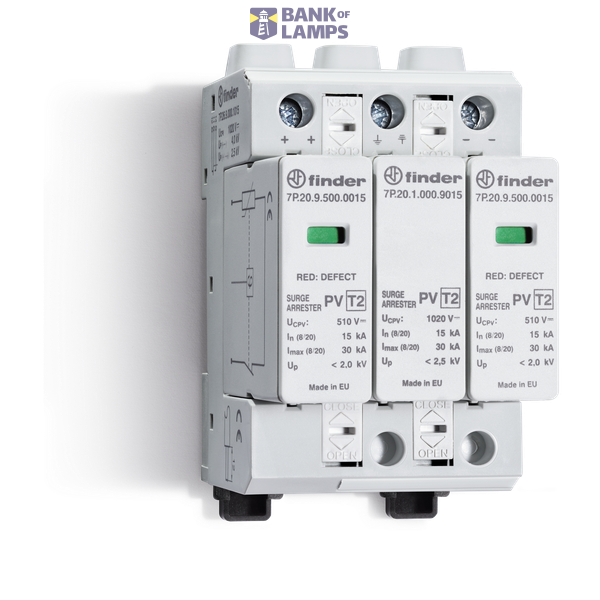

SURGE PROTECTION DEVICE
Discontinued
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | SURGE PROTECTION DEVICE |
| Brand | FINDER |
| ETIM | EC000941 |
| Voltage protection level | 4 kV |
| Nominal discharge surge current (8/20) | 15 kA |
| Degree of protection (IP) | IP20 |
| Max. PV-voltage | 1020 V |
| System configuration DC | No |
| System configuration IT | No |
| System configuration TN | No |
| System configuration TN-C-S | No |
Packing details
| Packing level 1 | 8012823398112 |
Other Technical data
| Mounting method | DIN rail (top hat rail) 35 mm |
| With remote signalling contact | No |
| Number of conductors (without earthing) | 2 |
| Construction size | 3 modular spacing |
| Category type 2 | Yes |
| Signalling at the device | Optic |
| Integrated backup fuse | No |
| System configuration TN-C | No |
| System configuration TN-S | No |
| System configuration TT | No |
| System configuration other | Yes |
| Max. discharge surge current (8/20) | 30 kA |
| Max. overcurrent protection device, parallel connection (fuse) | 160 A |
Description
Surge protection device Mounting method: DIN rail (top hat rail) 35 mm With remote signalling contact: no Number of conductors (without earthing): 2 Construction size: 3 modular spacing Nominal discharge surge current (8/20): 15 kA. Category type 2: yes Signalling at the device: Optic Protection category: IP20 Max. PV-voltage: 1020 V. Integrated backup fuse: no System configuration DC: no System configuration IT: no System configuration TN: no System configuration TN-C: no System configuration TN-S: no System configuration TT: no System configuration other: yes System configuration TN-C-S: no Max. discharge surge current (8/20): 30 kA.
