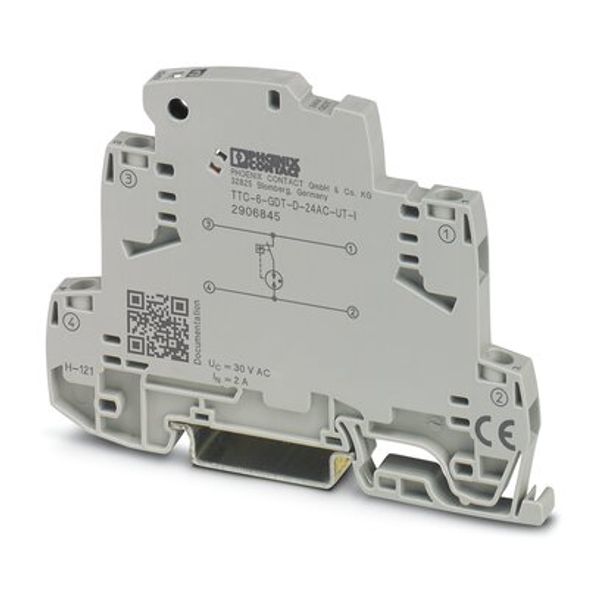

TTC-6-GDT-D-24AC-UT-I - Surge protection device

Name: TTC-6-GDT-D-24AC-UT-I - Surge protection device
Brand: Phoenix Contact
Price: 18.670 EUR
Availability: PreOrder

Order only

Price (excl. VAT):

18,67 € per pcs

This price is valid until 24.12.26

EAN: 4055626137018

MPN: 2906845

Box: 1

Estimate delivery time to our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	TTC-6-GDT-D-24AC-UT-I - Surge protection device
Brand	Phoenix Contact
Categories	Surge Protection Devices (SPD)
Country of origin*	DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8536 3010 00
Max. continuous voltage AC	30 V
Nominal discharge surge current (8/20)	5 kA
Nominal load current	1 A
Voltage protection level core/core	800 V
Max. continuous voltage DC	28 V
Voltage protection level core/signal ground	0 V
Nominal voltage AC	24 V

Packing level 1

4055626137018, 4055626137018

Mounting method	Other
Connection 1	Clamp
Lightning impulse current (10/350 µs)	0 kA
With remote signalling contact	No
Number of conductors (without earthing)	0
Limiting frequency	0 MHz
Explosion-tested version	No
Voltage protection level core/earth	0 V
Signalling at the device	Optic
Voltage protection level signal ground/protective ground	0 V
Assembly width	0 mm
