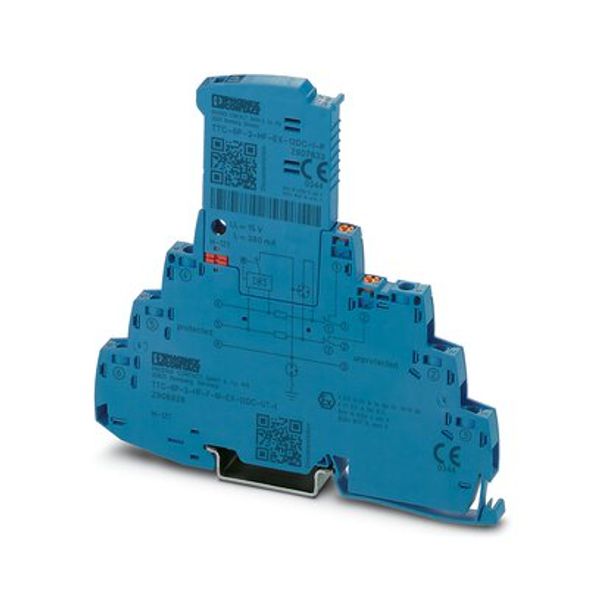

TTC-6P-3-HF-F-M-EX-12DC-UT-I - Surge protection device

Name: TTC-6P-3-HF-F-M-EX-12DC-UT-I - Surge protection device
Brand: Phoenix Contact
Price: 111.980 EUR
Availability: PreOrder

Order only

Price (excl. VAT):

111,98 € per pcs

This price is valid until 24.12.25

EAN: 4055626135885

MPN: 2906826

Box: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	TTC-6P-3-HF-F-M-EX-12DC-UT-I - Surge protection device
Brand	Phoenix Contact
Categories	Surge Protection Devices (SPD)
Country of origin*	DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8536 3010 00
Max. continuous voltage AC	0 V
Nominal discharge surge current (8/20)	5 kA
Nominal load current	0.6 A
Voltage protection level core/core	145 V
Max. continuous voltage DC	15 V
Voltage protection level core/signal ground	95 V
Nominal voltage DC	12 V

Packing details

Packing level 1

4055626135885, 4055626135885

Other Technical data

Mounting method	Other
Connection 1	Clamp
Lightning impulse current (10/350 µs)	0 kA
With remote signalling contact	No
Number of conductors (without earthing)	0
Limiting frequency	0 MHz
Explosion-tested version	Yes
Voltage protection level core/earth	1100 V
Signalling at the device	Optic
Voltage protection level signal ground/protective ground	0 V
Assembly width	0 mm

Description

Surge protection, consisting of protective plug and base element, with integrated status indicator and knife disconnection for a 3-wire Ex i signal circuit with common reference potential. For HF applications. Indirect grounding via gas-filled surge arrester, HART-compatible.
