TTC-6P-1X2-M-EX-24DC-UT-I - Surge protection device

Name: TTC-6P-1X2-M-EX-24DC-UT-I - Surge protection device
Brand: Phoenix Contact
Price: 92.380 EUR
Availability: PreOrder

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

92,38 € per pcs

This price is valid until 24.12.25

EAN: 4055626135861

MPN: 2906824

Box: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	TTC-6P-1X2-M-EX-24DC-UT-I - Surge protection device
Brand	Phoenix Contact
Categories	Lighting protection
Country of origin	DE
Harmonized System Code	8536 3010 00
Mounting method	Other
Connection 1	Clamp
Lightning impulse current (10/350 µs)	0 kA
With remote signalling contact	No
Number of conductors (without earthing)	0
Limiting frequency	0 MHz
Explosion-tested version	Yes
Max. continuous voltage AC	0 V
Nominal discharge surge current (8/20)	5 kA
Nominal load current	0.6 A
Voltage protection level core/core	55 V
Voltage protection level core/earth	1400 V
Signalling at the device	Optic
Max. continuous voltage DC	30 V
Voltage protection level core/signal ground	0 V
Voltage protection level signal ground/protective ground	0 V
Nominal voltage DC	24 V
Assembly width	0 mm

Packing details

Packing level 1

4055626135861, 4055626135861

Description

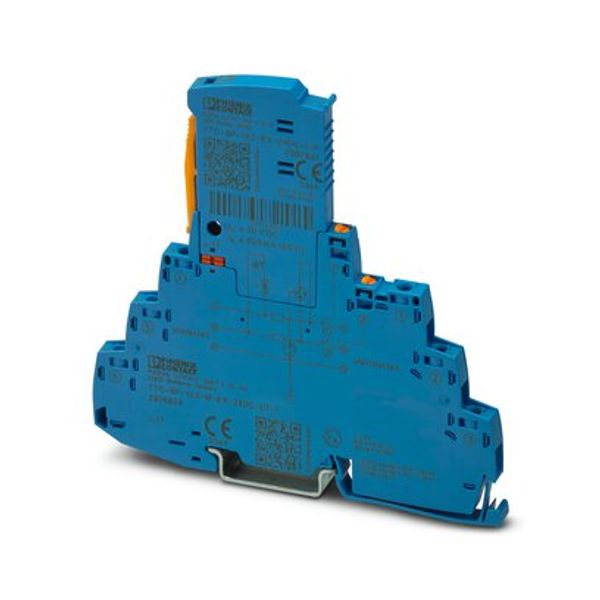

Surge protection, consisting of protective plug and base element, with integrated status indicator and disconnect knife for a 2-wire floating Ex i signal circuit, e.g., 0(4) ... 20 mA current loop, HART-compatible.
