Dehn

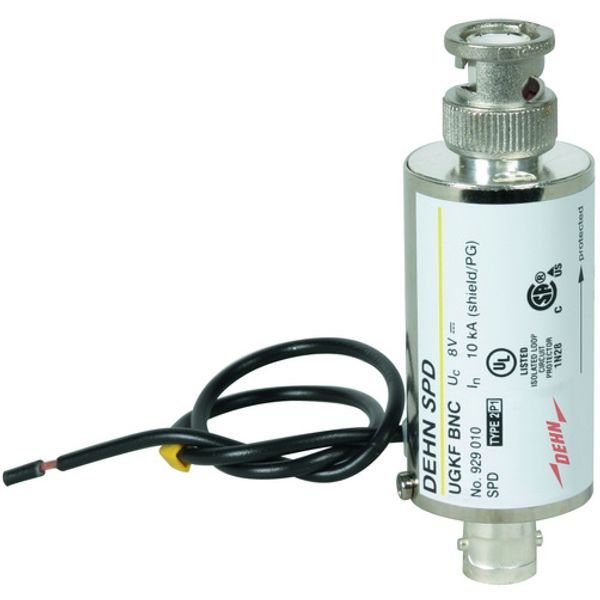

Surge arrester with BNC connection, socket and connector

In stock: No Vendor stock: No Minimal order quantity: 1
Price (excl. VAT):
241,61 €
This price is valid until 31.12.25
EAN: 4013364039940
MPN: 929010
Package: 1
Estimate delivery time at our warehouse (approx.): 2 weeks

Technical Information

Item condition New
Manufacture name Surge arrester with BNC connection, socket and connector
Brand Dehn
Categories Surge Protection Devices (SPD)
Country of origin DE
Harmonized System Code 8536 3010 00
Nominal discharge surge current (8/20) 2.5 kA
Nominal load current 0.1 A
Max. continuous voltage DC 8 V
Nominal voltage DC 5 V

Packing details

Packing level 1 4013364039940, 4013364039940

Other Technical data

Mounting method Connector/cable adapter
Connection 1 BNC, 75 Ohm
Number of conductors (without earthing) 1
Assembly width 24 mm
Earthing via Separate conductor

Downloads

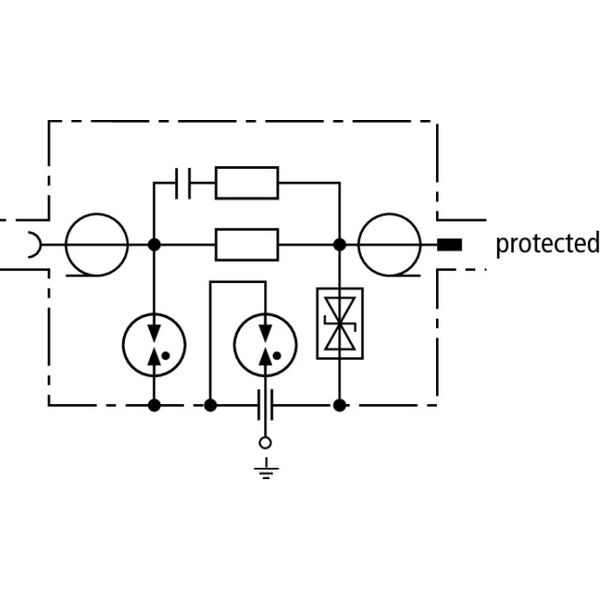

Product data sheet Dimensioned drawing Circuit diagram Deep link REACH

Description

Two-stage surge arrester with indirect shield earthing for protecting video cameras and Arcnet with BNC connection to avoid ground loops.
