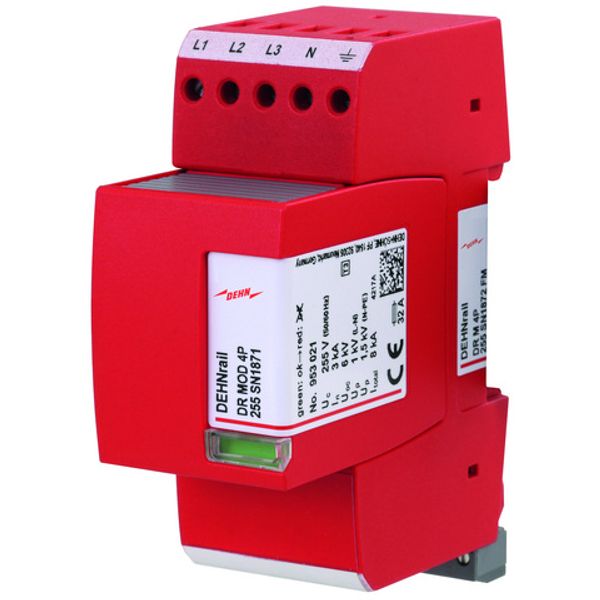

Surge arrester Type 3 DEHNrail M 4-pole 255V f. industry electronics

Name: Surge arrester Type 3 DEHNrail M 4-pole 255V f. industry electronics
Brand: Dehn
Price: 182.090 EUR
Availability: PreOrder

Order only

Price (excl. VAT):

182,09 €

This price is valid until 24.12.25

EAN: 4013364353060

MPN: 953406

Package: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	Surge arrester Type 3 DEHNrail M 4-pole 255V f. industry electronics
Brand	Dehn
Categories	Surge Protection Devices (SPD)
Country of origin*	RO
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8536 3030 00
Max. continuous voltage AC	255 V
Nominal discharge surge current (8/20) (L-N)	3 kA
Nominal voltage AC	230 V
Voltage protection level L-N	1 kV
Voltage protection level L-PE/N-PE	1.5 kV
Degree of protection (IP)	IP20

Packing details

Packing level 1

4013364353060, 4013364353060

Other Technical data

Mounting method	DIN rail (top hat rail) 35 mm
With remote signalling contact	Yes
Number of poles	4
Category type 3	Yes
Signalling at the device	Optic
Max. conductor cross section solid (solid, stranded)	4 mm²
Max. conductor cross section flexible (fine-strand)	2.5 mm²
Total discharge current (8/20) (L1+L2+L3+N-PE)	8 kA
Max. overcurrent protection device, parallel connection (fuse)	32 A

Downloads

Product data sheet Dimensioned drawing Circuit diagram Deep link REACH

Description

Four-pole DEHNrail modular surge arrester (type 3 according to EN 61643-1) consisting of a base part and plug-in protection module. High discharge capacity due to heavy-duty zinc oxide varistor / spark gap combination. For protecting the power supply circuit of industrial electronics equipment against transient surges in switchgear cabinets. For installation in conformity with the lightning protection zone concept at the boundaries from 1 – 2 and higher.
