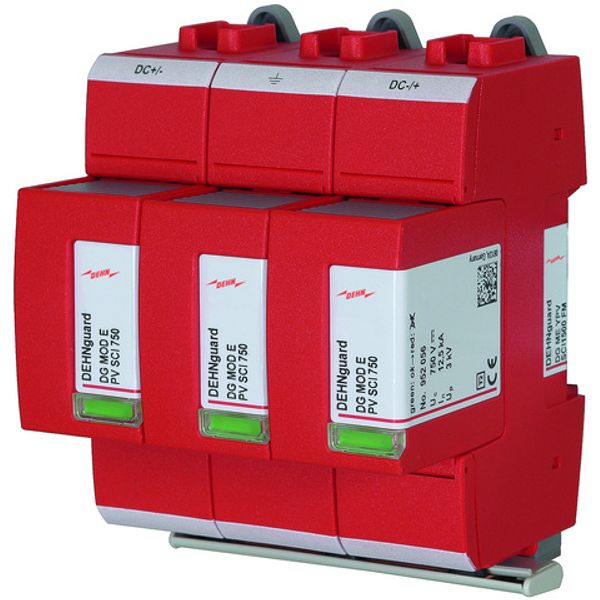

Surge arrester type 2 DEHNguard ME multi- pole f. PV systems up to 150

Name: Surge arrester type 2 DEHNguard ME multi- pole f. PV systems up to 150
Brand: Dehn
Price: 678.130 EUR
Availability: PreOrder

Order only

Price (excl. VAT):

678,13 €

This price is valid until 30.06.26

EAN: 4013364149076

MPN: 952525

Package: 1

Estimate delivery time at our warehouse (approx.): 2 weeks

Technical Information

Item condition	New
Manufacture name	Surge arrester type 2 DEHNguard ME multi- pole f. PV systems up to 150
Brand	Dehn
Categories	Surge Protection Devices (SPD)
Country of origin*	DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8535 4000 00
Voltage protection level	6 kV
Nominal discharge surge current (8/20)	12.5 kA
Degree of protection (IP)	IP20
Max. PV-voltage	1500 V
System configuration DC	Yes

Packing details

Packing level 1

4013364149076, 4013364149076

Other Technical data

Mounting method	DIN rail (top hat rail) 35 mm
With remote signalling contact	Yes
Number of conductors (without earthing)	2
Construction size	4.5 modular units
Category type 2	Yes
Signalling at the device	Optic
Max. conductor cross section solid (solid, stranded)	35 mm²
Max. conductor cross section flexible (fine-strand)	25 mm²
Short-circuit breaking capacity (Isccr)	10 kA

Downloads

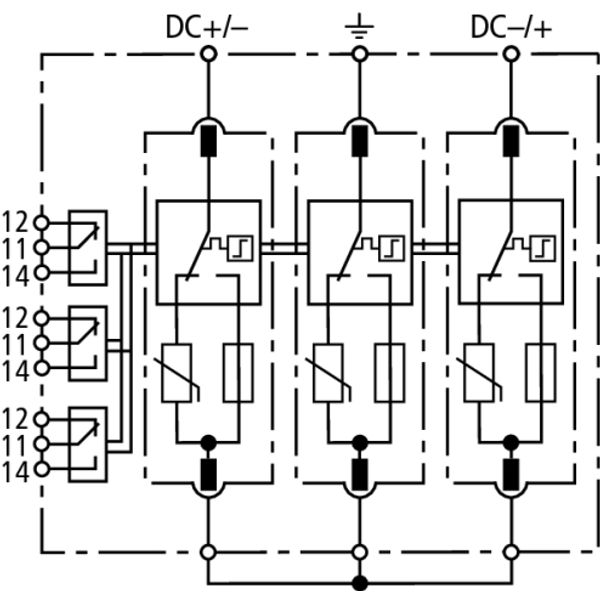

Product data sheet Dimensioned drawing Circuit diagram Deep link REACH

Description

Multipole DEHNguard ME YPV SCI type 2 surge arrester according to EN 50539-11 with three-step d.c. switching device consisting of a base part and plug-in protection modules. Combined disconnection and short-circuiting device with safe electrical isolation in the protection module. For protecting low-voltage consumer's installations against surges. For use according to IEC 60364-7-712:2002-05 (installation of photovoltaic power supply systems).
