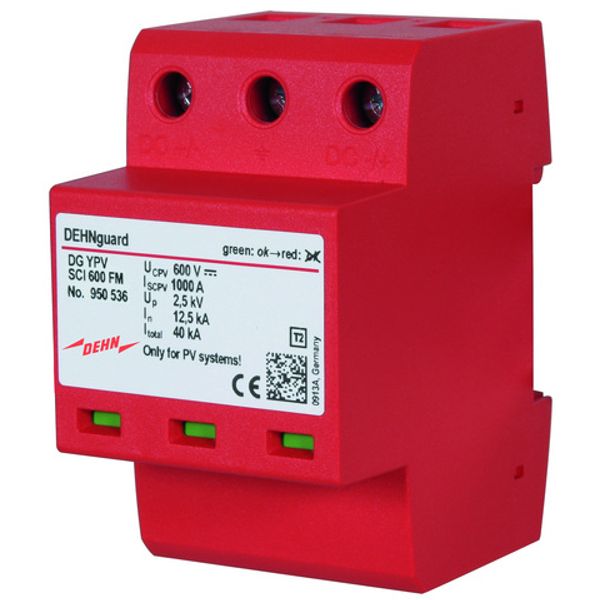

Surge arrester Type 2 DEHNguard M multi- pole f. PV systems up to 600V
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
312,50 €
EAN: 4013364154995
MPN: 950536
Package: 1
Estimate delivery time at our warehouse (approx.):
2 weeks
Technical Information
| Item condition | New |
| Manufacture name | Surge arrester Type 2 DEHNguard M multi- pole f. PV systems up to 600V |
| Brand | Dehn |
| Categories |
Surge Protection Devices (SPD)
|
| Country of origin | DE |
| Harmonized System Code | 8536 3030 00 |
| Voltage protection level | 2.5 kV |
| Nominal discharge surge current (8/20) | 12.5 kA |
| Degree of protection (IP) | IP20 |
| Max. PV-voltage | 600 V |
| System configuration DC | Yes |
Packing details
| Packing level 1 | 4013364154995, 4013364154995 |
Other Technical data

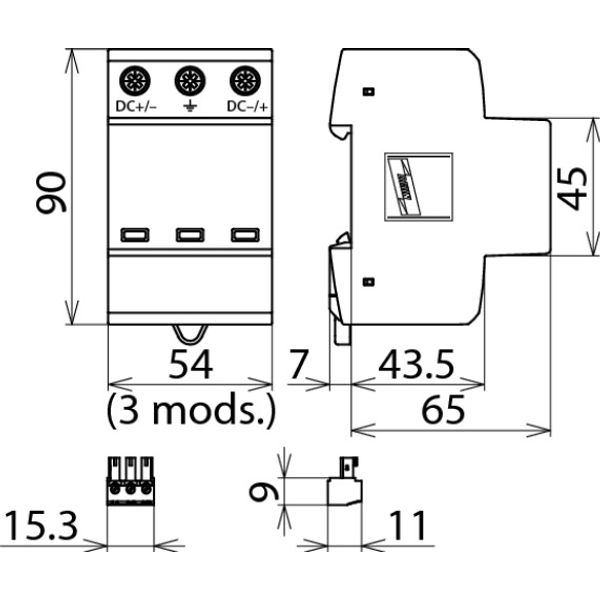

| Mounting method | DIN rail (top hat rail) 35 mm |
| With remote signalling contact | Yes |
| Number of conductors (without earthing) | 2 |
| Construction size | 3 modular spacing |
| Category type 2 | Yes |
| Signalling at the device | Optic |
| Max. conductor cross section solid (solid, stranded) | 35 mm² |
| Max. conductor cross section flexible (fine-strand) | 25 mm² |
| Max. discharge surge current (8/20) | 25 kA |
| Short-circuit breaking capacity (Isccr) | 1 kA |
Downloads
Description

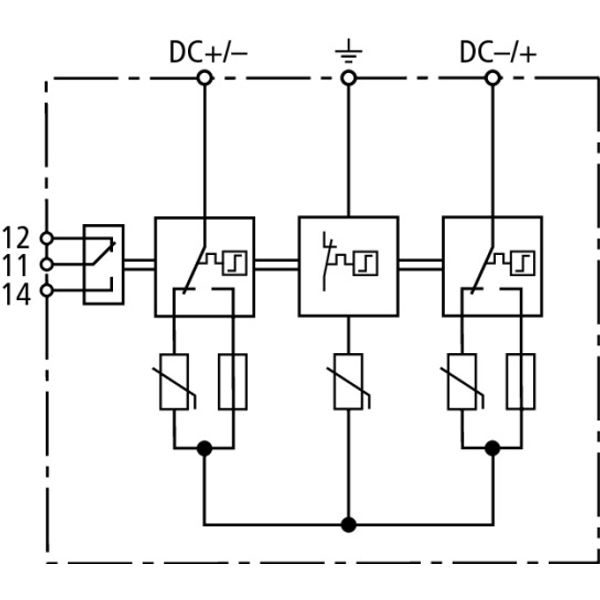

Multipole type 2 surge arrester DEHNguard YPV SCI according to EN 61643-31 with three-step d.c. switching device. Combined disconnection and short-circuiting device with safe electrical isolation. For protecting low-voltage consumer's installations against surges. For use in accordance with IEC 60364-7-712:2002-05 (installation of photovoltaic power supply systems).
