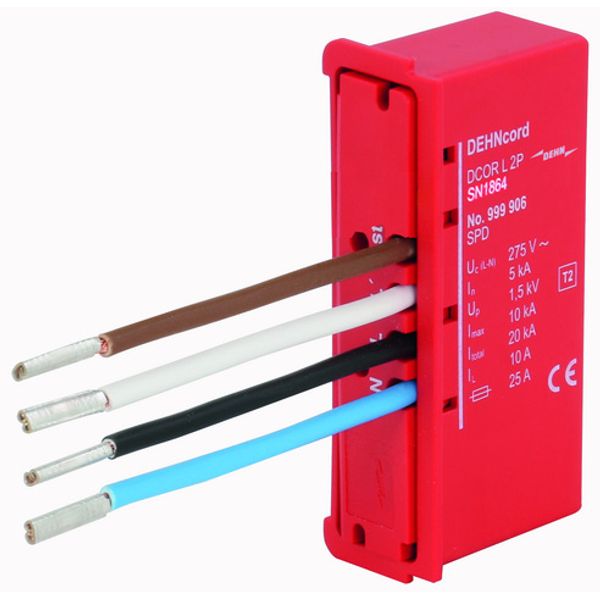

Surge arrester Type 2 DEHNcord 2-pole f. electr. installation systems
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
105,43 €
EAN: 4013364310926
MPN: 999906
Package: 1
Estimate delivery time at our warehouse (approx.):
2 weeks
Technical Information
| Item condition | New |
| Manufacture name | Surge arrester Type 2 DEHNcord 2-pole f. electr. installation systems |
| Brand | Dehn |
| Categories |
Surge Protection Devices (SPD)
|
| Country of origin | RO |
| Harmonized System Code | 8536 3030 00 |
| Nominal discharge surge current (8/20) | 5 kA |
| Nominal voltage AC | 230 V |
| Voltage protection level L-N | 1.5 kV |
| Degree of protection (IP) | IP20 |
Packing details
| Packing level 1 | 4013364310926, 4013364310926 |
Other Technical data
| Mounting method | Direct mounting |
| Number of conductors (without earthing) | 2 |
| Construction size | Other |
| Max. continuous voltage AC | 275 V |
| Category type 2 | Yes |
| Signalling at the device | Optic |
| Max. discharge surge current (8/20) | 10 kA |
| Short-circuit breaking capacity (Isccr) | 6 kA |
| Max. overcurrent protection device, parallel connection (fuse) | 16 A |
Downloads
Description
Two-pole DEHNcord L surge arrester, type 2 according to EN 61643-11 with a compact design for use in the cable junction boxes of LED light poles. With disconnection of the load circuit in case of fault and protection of the control phase. For installation in conformity with the lightning protection zone concept at the boundaries from 0B – 1 and higher.
